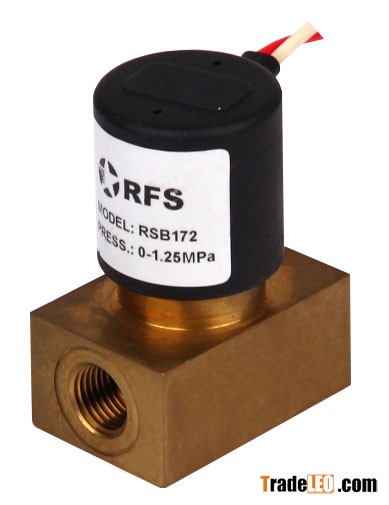

SB172 Latch Valve

Feature :Bistable Design for power saving

Brass Body and aluminum body are optional

Technic data:

Media :Clean Air / Water

Working Type :Bistable

Pattern :Normally close

Orifice :2.0MM / 2.5MM / 6MM

Connection Ports :G1/4'' G1/2''

Working Pressure :12BAR / 4BAR / 0.5BAR

Max Pressure :2.0Mpa

Working Temperature :-10 ~ 80℃

Rated Voltage :DC12V /DC24 pulse

Power :4.8 -20 W

Protection class :IP65

Insulation Class :F Class

Valve Body material :Brass / Aluminum

Seal Material :NBR .FKM

More information ,please kindly contact with me .

Fenghua xingyu Electron company limited ,you are welcome to our factory .
