High quality of plastic water reducing pressure valve .

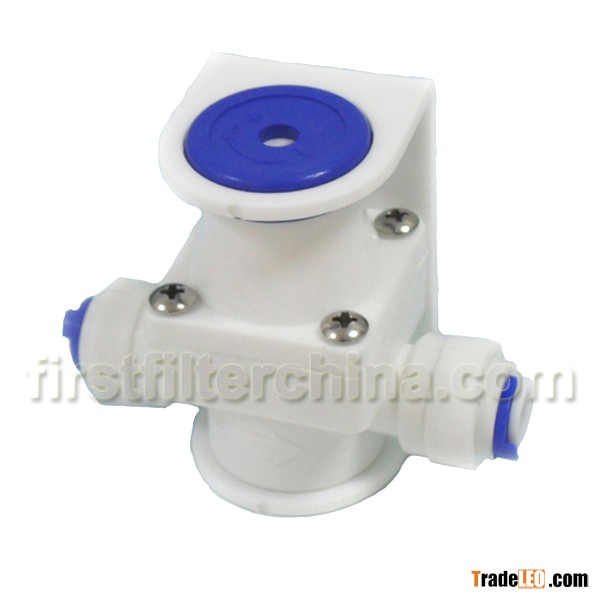

Water Pressure Reducing Valves

Model NO: V08
Specifications: 1/4 '' tube size*1/4'' tube size
3/8 '' tube
size*3/8'' tube size
1/4 '' male thread*1/4'' female thread
Material:
POM
Inlet pressure range: 3-10 KGS
Outlet pressure range: 2-4 kg s( the
out pressure could adjust. To switch the blue part of the top of the valve.
)
The minimum pressure: 0.2Mpa
Flow rate range maximum to minimum: below
or equal to.89L/H
Size: 5cm*6.5cm ( length*height)

A water pressure reducing valve is used to adjust the force of water going
through the supply pipes. To raise the downstream pressure, turn the adjusting
screw clockwise to the desired pressure level. To lower the downstream pressure,
turn the adjusting screw counter clockwise to the desired pressure level. When
adjustments are complete, tighten the lock
