Brand:EVERBEARING
Model:CI-093-Y
Send Inquiry
| DN | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | |
| L | 250 | 285 | 335 | 370 | 420 | 490 | 570 | 680 | 800 | |
| H | 168 | 185 | 200 | 235 | 295 | 345 | 425 | 515 | 600 | |
| D | 155 | 175 | 185 | 210 | 250 | 280 | 330 | 400 | 445 | |

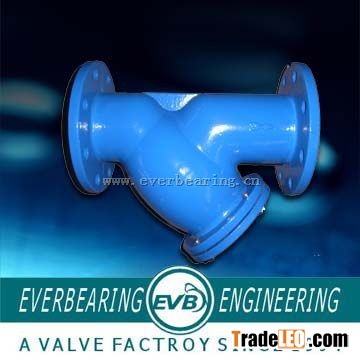

JIS y strainer Application
- Face to face is according to ANSI
- Working pressrue 125LB
- Working Temperature ≤120°C
JIS y strainer Main Materail
- Body:Cast Iron(FC200)
- Bonnet:Cast Iron(FC200)
- Washer:NBR
- Screen:Stainless Steel(304/316/304L/316L)
- Bolt:Carbon Steel
JIS y strainer Main Dimensions
