Specifications
BC-CH Reconnectable Breakaway is dry reconnectable breakaway for the conventional dispensing market.

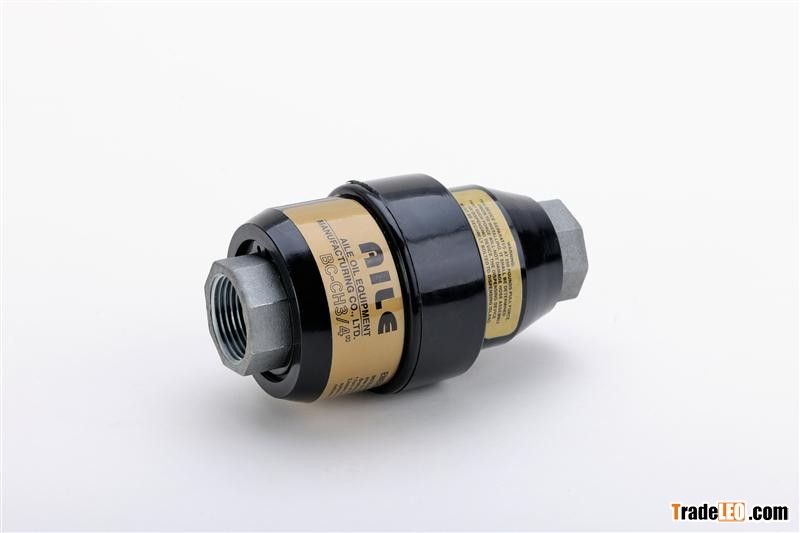

BC-CH Reconnectable Breakaway

1) Dry reconnectable breakaway for the conventional dispensing market
2) Designed to be installed on fuel dispensing hoses, and will separate when subjected to a designated pull force
3) The dual valves seat automatically stops the flow of fuel and limiting any fuel spillage, while protecting the dispensing equipment
4) When reconnecting the separated halves, the Aile BC-CH seals tightly on an O-ring before the poppet stems engage to open the valve
5) For proper operation on high-hanging hoses, the Aile BC-CH  must always be installed with a 'straightening' hose with a minimum length of 9"
6) For low hose applications, the Aile BC-CH should be installed down stream of the retractor cable

7) Materials:
    a) Body: die cast zinc
    b) Main Seals: viton
    c) Main spring: stainless steel
    d) Guide and poppet: POM
    e) Protective sleeve: PA66

8) Ordering specifications:
    a) BC-CH 3/4": BSP3/4", NPT 3/4"
    b) BC-CH 1": BSP1", NPT1"
9) Pull force: the Aile BC-CH 3/4" will break away with a pull force of  250 lbs ±5%, the Aile BC-CH 1" will break away with a pull force of  300 lbs±5%

10) Unique double-poppet design features low pressure drop
11) Flow rate: 0-60L/min
12) Working pressure: 0.18MPa
13) Coupling halves: protected by proven plastic sleeves
14) Easily reconnection: just 'push and twist' until hearing the audible click, signifying the unit has been correctly reconnected
15) Reconnection force approximately 15 lbs
16) Line shock: the Aile BC-CH is able to absorb the effects of normal line shock through the unique design of the disconnecting features
17) May be reconnected under wet or dry hose conditions
18) 100% factory tested
