Brand:SKF

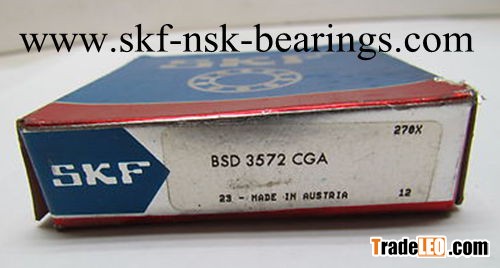

Model:BSD 3572 CGA
SKF angular contact thrust ball bearings have single direction angular contact thrust ball bearings and double direction angular contact thrust ball bearings. SKF BSD 3572 CGA bearings are single direction angular contact thrust ball bearings. Many tools require screw drives that can position a work piece or machines component quickly and efficiently. To meet these requirements, screw drives are usually supported at both ends by super-precision bearings that can provide a high degree of stiffness. SKF has developed super-precision angular contact ball bearings that can meet these ever-increasing performance requirements.
The following is he technical data of SKF BSD 3572 CGA bearings:
Inner diameter: 35mm
Outer diameter: 72mm
Breadth: 15mm
Basic dynamic load ratings: 36.5Kn
Basic static load ratings: 98Kn
Attainable speeds when lubricating with Grease: 7500r/min
Attainable speeds when lubricating with Oil: 9000r/min
Mass: 0.3kg
Origin: made in Austria
Package: SKF standard package
Payment: 100% T/T
Our stock list of SKF single direction angular contact thrust ball bearings:
SKF bearings No | d | D | B | Mass |
mm | mm | mm | kg | |
BSA 201 CG | 12 | 32 | 10 | 0.043 |
BSA 202 CG | 15 | 35 | 11 | 0.054 |
BSA 203 CG | 17 | 40 | 12 | 0.078 |
BSA 204 CG | 20 | 47 | 14 | 0.12 |
BSD 2047 CG | 20 | 47 | 15 | 0.13 |
BSA 205 CG | 25 | 52 | 15 | 0.15 |
BSA 305 CG | 25 | 62 | 17 | 0.27 |
BSD 2562 CG | 25 | 62 | 15 | 0.24 |
BSA 206 CG | 30 | 62 | 16 | 0.23 |
BSD 3062 CG | 30 | 62 | 15 | 0.22 |
BSA 306 CG | 30 | 72 | 19 | 0.4 |
BSD 3572 CG | 35 | 72 | 15 | 0.3 |
BSA 207 CG | 35 | 72 | 17 | 0.33 |
BSA 307 CG | 35 | 80 | 21 | 0.56 |
BSD 4072 CG | 40 | 72 | 15 | 0.26 |
BSA 208 CG | 40 | 80 | 18 | 0.43 |
BSD 4090 CG | 40 | 90 | 20 | 0.68 |
BSA 308 CG | 40 | 90 | 23 | 0.77 |
BSD 4575 CG | 45 | 75 | 15 | 0.26 |
BSA 209 CG | 45 | 85 | 19 | 0.51 |
BSD 45100 CG | 45 | 100 | 20 | 0.77 |
BSA 210 CG | 50 | 90 | 20 | 0.56 |
BSD 50100 CG | 50 | 100 | 20 | 0.71 |
BSD 55100 CG | 55 | 100 | 20 | 0.66 |
BSD 55120 CG | 55 | 120 | 20 | 1.14 |
BSA 212 CG | 60 | 110 | 22 | 0.95 |
BSD 60120 CG | 60 | 120 | 20 | 1.07 |
BSA 215 CG | 75 | 130 | 25 | 1.45 |
Single direction angular contact thrust ball bearings are superior axial stiffness, low frictional moment, excellent running accuracy. Don’t hesitate to send us email. If you want to know SKF bearings for more information, just call us or send us inquiry at sale@gmdb-bearings.com export@gmdb-bearings.com.
