Model:JC00202

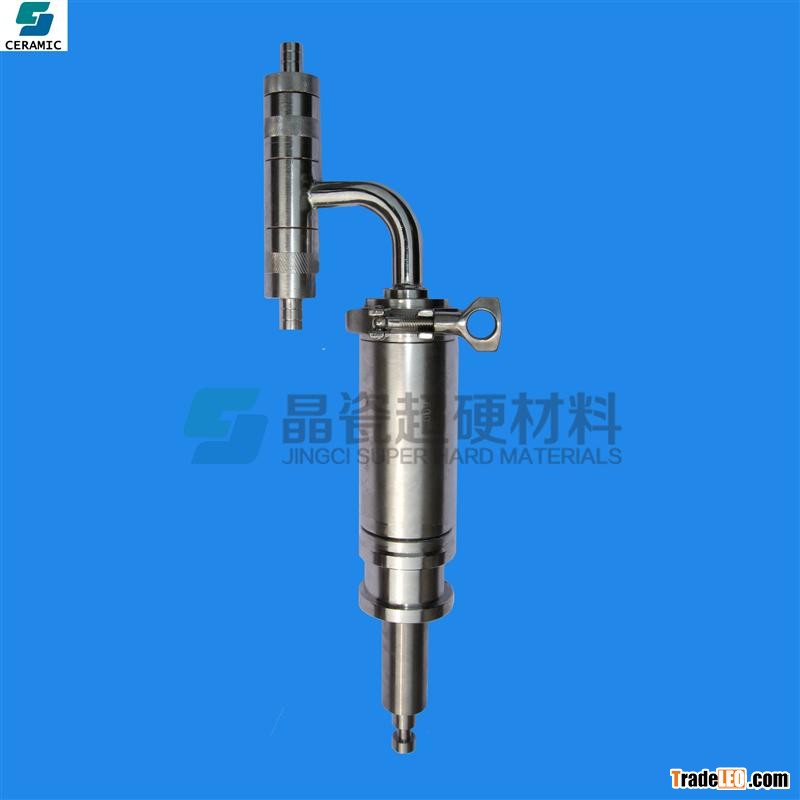

ceramic rod connect with 304 or 316l stainless steel
Our company can supply many kinds of ceramic parts according to the customers' differents requirements. Our products widely used a lots of fields as follow tables.
Including the ceramic plunger ceramic plunger pump, ceramic rod, ceramic shaft, ceramic piston, ceramic water valve sheet, ceramic pipe sleeve, ceramic loom plunger, ceramic seal ring, special shape ceramic, ceramic knife etc.
Please fell free to contact with us, we will try our best to meet you requirements. Welcome to our home www suzhoujingci com.
| Materials | 99.5% Al2O3, ZrO2, steatite and Sic. |
| Applications fields | All kinds of filling machines, including Pharmaceutical, Beverages, Cosmetics, Chemical, Pesticides, Dairy..The volume from 0.5 ml to 500 ml. |
| Madical care, Hemodialysis machines, Proportion pump, UF pump | |
| All kinds of pumps and valves using in High-Pressure cleaning machines | |
| Auto mobile Industrial | |
| Oil drilling equipement | |
| Insulation parts in electrical equipement | |
| Housewares such as ceramic knife, ceramc hair clipper spare parts | |
| processing technic | |
| Process range (mm) | |
| Outside Diameter | 1---100 |
| Inside Diameter | 0.1---80 |
| Length | 0.5---400 |
| Accuracy of working (mm) | |
| Perpendicularity | 0.01 |
| Concentricity | 0.01 |
| Roundness | 0.005 |
| Straightness | 0.005 |
| Parallelism | 0.01 |
| Planeness | 0.005 |
| Roughness | 0.05 |
| Fit clearance | 0.005 |
