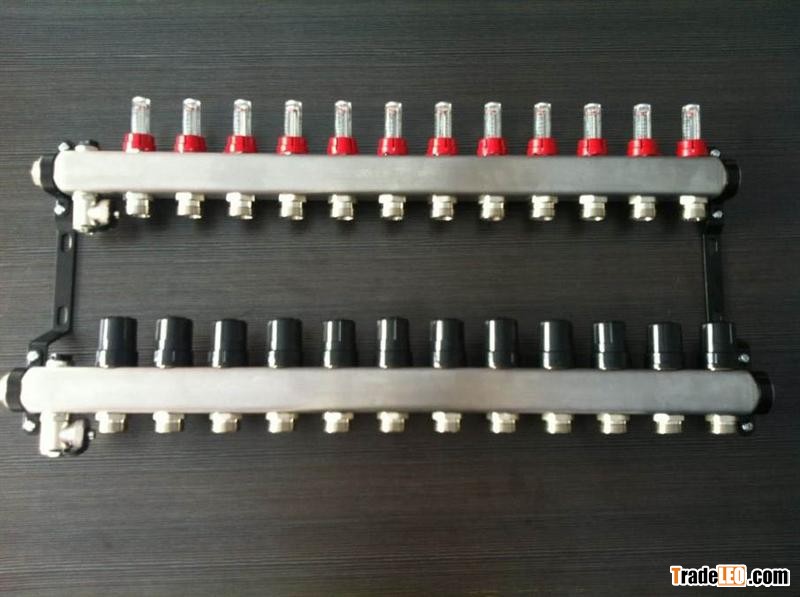

Material：Main tube 304 stainless steel (chromium≥18%，nickel≥8%)
Copper part 58 brass
Port: 2—13 ports
Main tube diameter: DN40
Threaded both ends: G1" (or G1-1/4” Optional)
Connection pipe size: 16x2.0 or 20x2.0, OEM is welcome
Distance between outlets: 50mm
Working temperature: 1-95
Working pressure: ≤1.25MPa
Medium: Water
Temperature control range: 3mm

For more information, please view our website: www.underfloorheatingmanifold.com

Standard size of thread for easy installment, 45 angle is designed for better seal of O-ring!

Thickness of 1.6mm wall working pressure up to 10 bar more safe!

Reasonable screw cap designing for value connection, saving cost.
