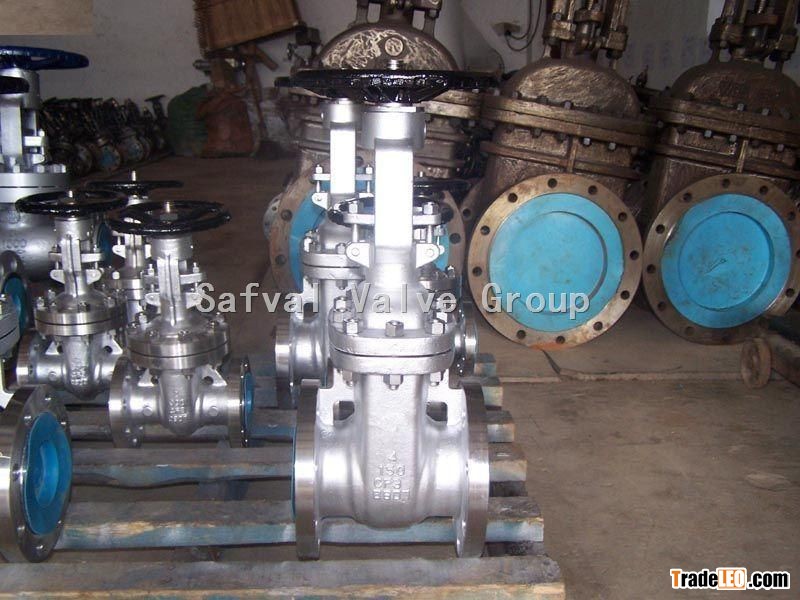

Carbon Steel Wedge Gate Valve

Description:

1. Full port design
2. OS&Y, outside screw and yoke
3. BB, bolted bonnet
4. Flexible wedge or solid wedge
5. Rising stem and non-rising handwheel
6. Flanged or welded ends
7. Renewable seat ring or welded seat ring
8. Handwheel, gear, electric, pneumatic actuator

Standards:
1. Standard Compliance: API 600, BS 1414
2. Pressure-Temp. Rating: ANSI B16.34
3. Face to Face: ANSI B16.10
4. End Flange:ANSI B16.5 (2”~24”), ASME B16.47 (26” Over)
5. Butt Welding Ends:ANSI B16.25
6. Manufacturing to NACE MR-01-75 (On Request)
7. Inspection and Test:Tested to API 598, BS 6755, Certified to EN10204 3.1B
