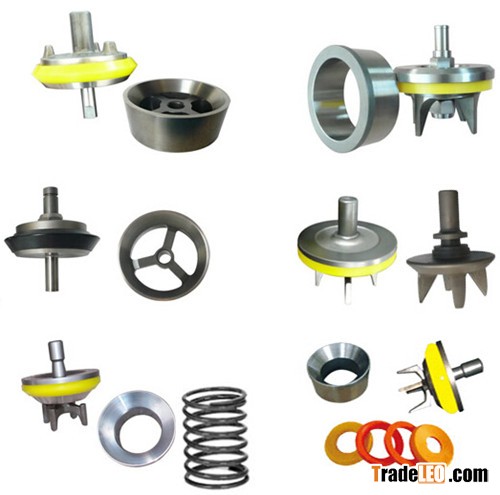

Valve Assembly (valves, seats, springs & inserts)

There are four kinds of valve assemblies, Stem Guided Valves &Cross-arms Seats, Three Wing Valves& Full Open Seats, Double Angle O-ringValve, and Standard Plate Type Valve.

Types:

Stem Guided Valves & Cross-arms Seats

Stem guided valves &cross-arms seat features an extra wide metal to metal seal on the valve flange.The serrated upper surface on the valve gives a longer non-breathing sealbetween valve body and insert while the rigid seat cross-arms give greaterstrength and positive sealing.

The strong, thick, valve knockoff nut holds the insert tightly reducing flex and breathing which lessens thechance of foreign matter getting between valve and insert.

Three Wing Valves& FullOpen Seats

Three-wing guided valves andfull open seats is forged with premium forged steel.  The flow is bigger compare with four-wingvalves and full open seats. The valve rubber can mount on the valve bodydirectly, don’t need to use plates and snap rings, have a longer service life.

Double Angle O-ring Valve

The Double Angle O-ring Valveis made with a tough one piece body to run more hours between change outs. It’smade with carburized premium alloy steel to resist wear, provide a positiveseal and help protect against wash out or damage to the pump. The Double AngleO-ring valve is 100% interchangeable to BAKER valves.

Standard Plate Type Valve

The standard plate type valveis extremely durable to its premium forged alloy steel body andits unique design. It has been proven by more than 50 years of oilfieldservice. To prevent dry pistons and liners at start up, the valve features apatented double angle polyurethane insert that maintains cylinder primingduring pump shut down. The precise control of insert pre-load is accomplished witha flat ground insert retaining plate and split retainers. The insert can bereplaced in the field with minimum down time.

Four-wing Valves & FullOpen Seats

There are two types for thefour-wing valves & full open seats: welded guided valves and forged guidedvalves. They feature great fluid flow and easy put out of valve seats. Thewelded guided valves use direct valve rubbers without plates and snap rings,the guide use premium cast steel and welded together with valve body. Theforged valve and guide are forged together with premium forged steel with ahigh strength and longer service life.
