NSK bearing 22213 EAE4 Spherical Roller Bearing - Sell

NSK bearing 22213 EAE4 Spherical Roller Bearing

2016-10-23 22:36 Views:287

Price:Negotiable
Brand:NSK
Model:22213 EAE4

NSK bearing 22213 EAE4 Spherical Roller Bearing

1: for the spherical roller bearing , base on CAGE , it have CA SERIES , CC SERIES AND E SERIES .

2: Spherical roller bearing locates between the inner ring with two grooves and the outer ring with a spherical surface. The product assembles the drum-shaped roller. It has two rows of rollers mainly bearing radial load and the axial load in either direction. Our product has a high radial load capacity which is especially suitable for heavy load or vibration load. But it is unable to bear the pure axial load.
Spherical roller bearings are widely used in areas including paper making machinery, speed reducer, railway vehicle axle, rolling mill gear box bearing, rolling mill roller, roll crusher, vibrating screen, printing machinery, woodworking machinery, various types of industrial reducer and vertical ball bearings.

3: for the spherical roller bearing , all the items we can supply , for example ,

Bearings NO.	d	D	B	C	C0	Weight
mm	mm	mm	kN	kN	kg
22208 E	40	80	23	96.5	90	0.53
22208 EK	40	80	23	96.5	90	0.53
21308 E	40	90	23	104	108	0.75
21308 EK	40	90	23	104	108	0.75
22308 E	40	90	33	150	140	1.05
22308 EK	40	90	33	150	140	1.05
22209 E	45	85	23	102	98	0.58
22209 EK	45	85	23	102	98	0.58
21309 E	45	100	25	125	127	0.98
21309 EK	45	100	25	125	127	0.98
22309 E	45	100	36	183	183	1.4
22309 EK	45	100	36	183	183	1.35
22210 E	50	90	23	104	108	0.63
22210 EK	50	90	23	104	108	0.63
21310 E	50	110	27	156	166	1.35
21310 EK	50	110	27	156	166	1.35
22310 E	50	110	40	220	224	1.9
22310 E/VA405	50	110	40	220	224	1.9
22310 EK	50	110	40	220	224	1.85
22211 E	55	100	25	125	127	0.84
22211 EK	55	100	25	125	127	0.82
21311 E	55	120	29	156	166	1.7
21311 EK	55	120	29	156	166	1.7
22311 E	55	120	43	270	280	2.45
22311 E/VA405	55	120	43	270	280	2.45
22311 EK	55	120	43	270	280	2.4
22212 E	60	110	28	156	166	1.15
22212 EK	60	110	28	156	166	1.15
21312 E	60	130	31	212	240	2.1
21312 EK	60	130	31	212	240	2.05
22312 E	60	130	46	310	335	3.1
22312 E/VA405	60	130	46	310	335	3.1
22312 EK	60	130	46	310	335	3.05
22213 E	65	120	31	193	216	1.55
22213 EK	65	120	31	193	216	1.5
21313 E	65	140	33	236	270	2.55
21313 EK	65	140	33	236	270	2.5
22313 E	65	140	48	340	360	3.75
22313 E/VA405	65	140	48	340	360	3.75
22313 EK	65	140	48	340	360	3.65
22214 E	70	125	31	208	228	1.55
22214 EK	70	125	31	208	228	1.5
21314 E	70	150	35	285	325	3.1
21314 EK	70	150	35	285	325	3.05
22314 E	70	150	51	400	430	4.55
22314 E/VA405	70	150	51	400	430	4.55
22314 EK	70	150	51	400	430	4.45
22215 E	75	130	31	212	240	1.7
22215 EK	75	130	31	212	240	1.65
21315 E	75	160	37	285	325	3.75
21315 EK	75	160	37	285	325	3.7
22315 E	75	160	55	440	475	5.55
22315 E/VA405	75	160	55	440	475	5.55
22315 EK	75	160	55	440	475	5.45
22216 E	80	140	33	236	270	2.1
22216 EK	80	140	33	236	270	2.05
21316 E	80	170	39	325	375	4.45
21316 EK	80	170	39	325	375	4.4
22316 E	170	58	490	540	6.6
22316 E/VA405	80	170	58	490	540	6.6
22316 EK	80	170	58	490	540	6.45
22217 E	85	150	36	285	325	2.65
22217 EK	85	150	36	285	325	2.6
21317 E	85	180	41	325	375	5.2
21317 EK	85	180	41	325	375	5.15
22317 E	85	180	60	550	620	7.65
22317 E/VA405	85	180	60	550	620	7.65
22317 EK	85	180	60	550	620	7.5
22218 E	90	160	40	325	375	3.4
22218 EK	90	160	40	325	375	3.35
21318 E	90	190	43	380	450	6.1
21318 EK	90	190	43	380	450	6
22318 E	90	190	64	610	695	9.05
22318 E/VA405	90	190	64	610	695	9.05
22318 EK	90	190	64	610	695	8.85
22219 E	95	170	43	380	450	4.15
22219 EK	95	170	43	380	450	4.05
21319 E	95	200	45	425	490	7.05
21319 EK	95	200	45	425	490	6.95
22319 E	95	200	67	670	765	10.5
22319 E/VA405	95	200	67	670	765	10.5
22319 EK	95	200	67	670	765	10.5
22220 E	100	180	46	425	490	4.9
22220 EK	100	180	46	425	490	4.8
21320 E	100	215	47	425	490	8.6
21320 EK	100	215	47	425	490	8.5
22320 E	100	215	73	815	950	13.5
22320 E/VA405	100	215	73	815	950	13.5
22320 EK	100	215	73	815	950	13
22222 E	110	200	53	560	640	7

4： brand

our brand is XRT . SKF , FAG , NSK , TIMKEN,INA , KOYO, NACHI, ASAHI ZWZ ect famous brand bearing , we also often export .

if have any needs for bearings , pls feel free to contact me .

my e-mail: jnxrt005@xrt-china.com

msn: famousbearing@hotmail.com

skype: emma200862

tel: 0086-18888301395

welcome your inquiry .

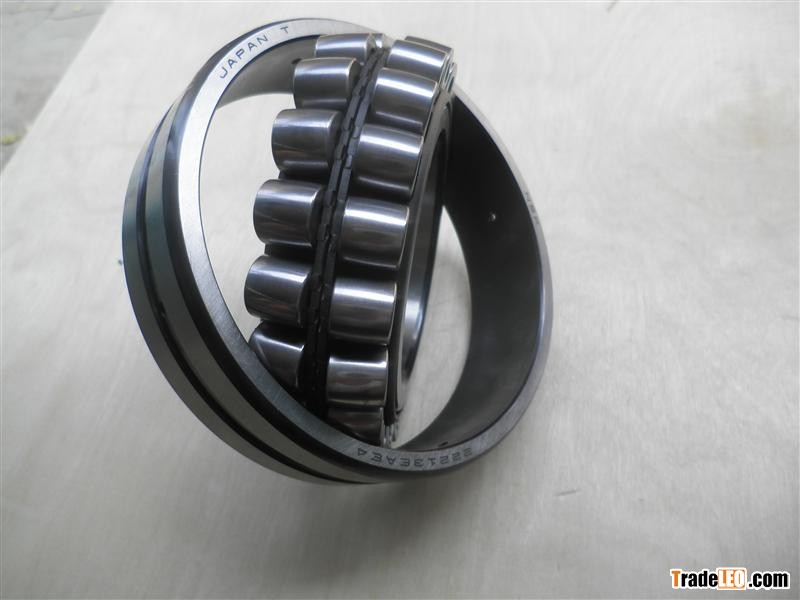

6: photos show :
