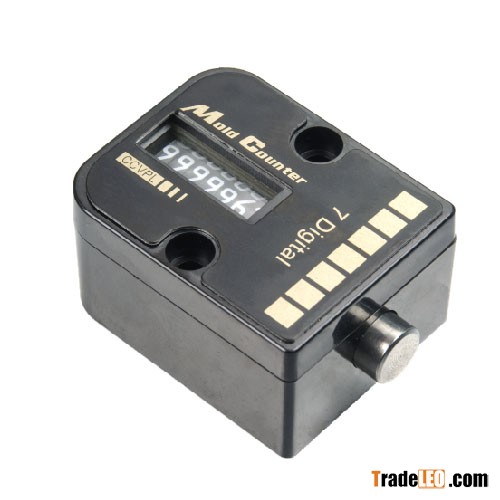

Our Shot/Mold Counter View positively monitors mold activity, validates  process
monitoring data,and  assists mold  maintenance  procedures.
1. Maximum    operating    temperature    is    250?F    (120?C)
2.Counter:    Non-resettable    mechanical,    7-digit
3.CVEX-100,CVEX-200.CVPL-100,CVPL-200
4.Glass-filled nylon housing

5.Socket Head Cap Screws M4-25 2 pieces

M-CVR
1, Bore the holes for the counter and actuator rod to the dimensions shown
in the figure below, from the rear of the movable mold plate.
2, Slot an opening for the display panel of the counter to the dimensions
shown in the figure below.
3, Screw the actuator rod into the plunger and insert the counter from
the rear of the mold plate.
4, Ensure that the actuator rod protrudes 4.0mm above the parting line.
5, Retain the bottom of the counter with the support plate.
