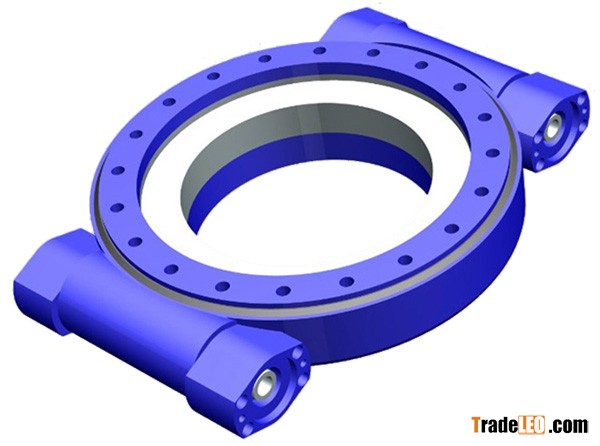

Brand:Shambon
Model:SE
We are professional manufacturer of slewing dive and slewing bearing in China.
Shambon slewing drives are applied to aerial platform, truck crane, marine crane,
wind turbine and solar tracking system.
We contribute ourselves to offer high quality and superior service to our customers
home and aboard.
Performance Parameters:
| Model | Output Torque | Tilting Moment Torque | Axial Load | Radial Load | Holding Torque | Gear Ratio | Tracking Precision | Self-locking Gears | Weight |
| SE3 | 0.4 | 1.1 | 30 | 16.6 | 2 | 62:1 | ≤0.200 | Yes | 12 kg |
| SE5 | 0.6 | 3 | 45 | 22 | 5.5 | 62:1 | ≤0.200 | Yes | 20 kg |
| SE7 | 1.5 | 13.5 | 133 | 53 | 10.4 | 73:1 | ≤0.200 | Yes | 23 kg |
| SE9 | 6.5 | 33.9 | 338 | 135 | 38.7 | 61:1 | ≤0.200 | Yes | 49 kg |
| SE12 | 7.5 | 54.3 | 475 | 190 | 43 | 78:1 | ≤0.200 | Yes | 61 kg |
| SE14 | 8 | 67.8 | 555 | 222 | 48 | 85:1 | ≤0.200 | Yes | 64 kg |
| SE17 | 10 | 135.6 | 976 | 390 | 72.3 | 102:1 | ≤0.150 | Yes | 105 kg |
| SE21 | 15 | 203 | 1598 | 640 | 105.8 | 125:1 | ≤0.150 | Yes | 149 kg |
| SE25 | 18 | 271 | 2360 | 945 | 158.3 | 150:1 | ≤0.150 | Yes | 204 kg |
Note:
1. For more details, please download the drawing with datasheet.
2. Different Electrical motor and hydraulic motors are available.
3. Special product can be customized.
4. Any questions please mail or phone us anytime.
