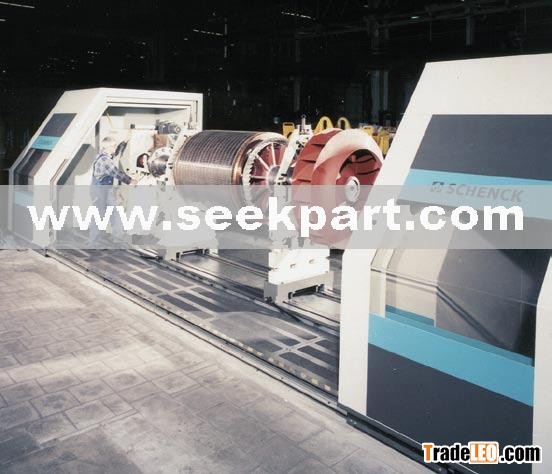

Horizontal Balancing Machine

Universally applicable through modular design
Safe handling through economic design concept
Full range of safety equipment for all protection classes
Easy change-over to different rotors

Product Specification
Range of application

Universal balancing machinery series HM6-HM80 are conceived for precise balancing of both rigid and flexible rotors

Typical applications are:

Blowers and fans for a variety of industries

High-speed and low-speed rollers for paper and thin sheet production

Electrical short-circuit armatures and generators for the electrical industry

Separators / centrifuges for water processing

Design

Due to their modular structure, these machinery can be adapted easily to the task in hand. The length of the machine bed is dependent on the length of the rotor; The required height of the bearing pedestals is determined by the rotor diameter. If the rotor is mounted on its won bearing journals, these will be supported by roller carriages. Depending on the requirements imposed by the rotor, sleeve bearings may also be used. Rotors requiring high torques are driven through variable-speed gearboxes and universal joint shaft. Lightweight rotors with smooth surfaces may be driven with the help of a belt drive system.

Special features

With the appropriate machine design and a suitable protection device the machinery can also be used for high-speed balancing
Bearing force monitoring for automatic shut-down in case of overload
No contact measurement of concentric running of rollers
Graphical display of acceleration curve with 1f and 2f measurement (CAB690)
Wide range of supplementary modules, e. G. For mass correction
