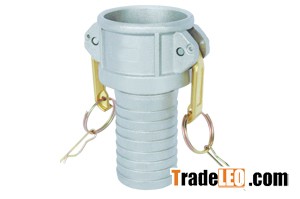

Aluminum Camlock Coupling

Working Pressure(Aluminum)

Size(Inch) : 1/2"   3/4"-2"  2-1/2"   3"  4"   5"-8"  6" (4)handles

Working  : 150    250     150   125  100   75     150

Pressure (Psi)

Standard:

●A-A-59326 (superseding MIL-C-27487) or DIN 2828.

Casting Method:
●Die-casting and Gravity-casting

Size
●1/2" to 8"

Handle

●Aluminum,Brass or Stainless Steel

Gasket

●NBR,EPDM,Viton,Silicone,PTFE

Type:
●A, B, C, D, DC, DP, E, F

Main material:
●Aluminum (or heat treated)

Thread:
● NPT
● BSP

Camlock fittings are manufactured by multiplematerials such as aluminum, stainless steel, brass, polypropylene &fiberglass reinforced nylon to satisfy diverse requirements on the markets.
