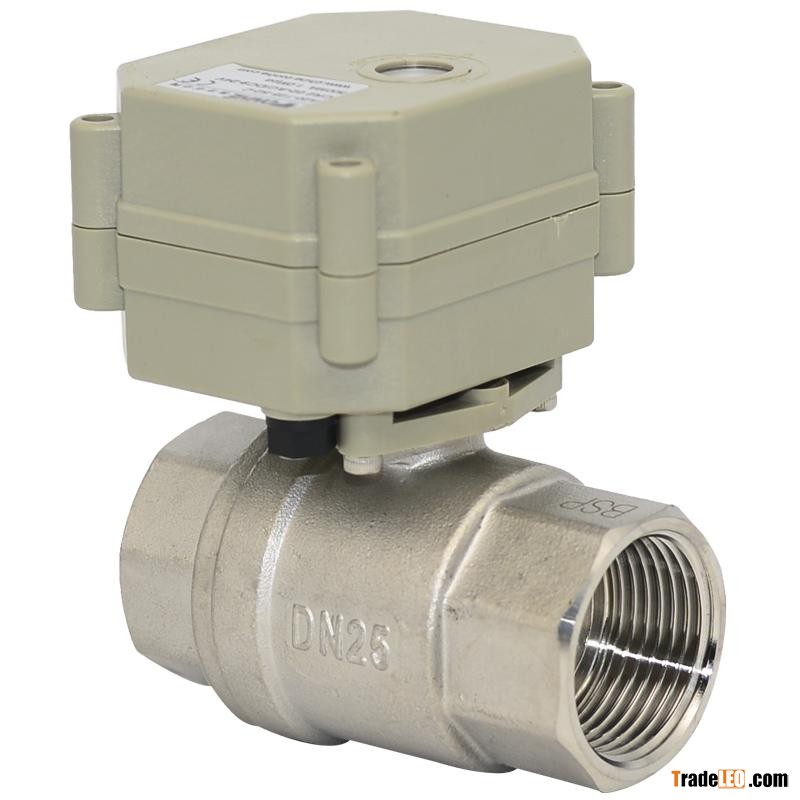

Brand:TONHE
Model:T25-S2-C
Technical Parameters:
| Product size | □NPT/BSP 1/4" □NPT/BSP 1/2"' □NPT/BSP 3/4'' □NPT/BSP 1" □NPT/BSP 1 1/4'' (Optional ) |
| Maximum working pressure | 1.3 MPa |
| Circulation medium | Fluid, air |
| Rated voltage | □DC5V/ □DC12V □DC24V □AC/DC9-24V □AC/DC-35V□AC110-230V (Optional ) |
| Wiring control methods | □CR2-01 □CR2-02 □CR3-01 □CR3-02 □CR3-03 □CR3-04 □CR4-01 □CR5-01 □CR5-02 □CR7-01 □CR7-02 □CR7-04（Optional） |
| Working current | ≤500MA |
| Open/close time | ≤5S/≤9S（Optional） |
| Life time | 70000 times |
| Valve Body material | □Brass □Nickel plated Brass □304 Stainless steel （Optional） |
| Actuator material | Engineering Plastics |
| Sealing material | EPDM & PTFE |
| Actuator rotation | 90° |
| Max. torque force | 2 Nm/4Nm（Optional） |
| Cable Length | 0.5m,1.5m（Optional） |
| Environment temperature | -15℃～50℃ |
| Liquid temperature | 2℃～90℃ |
| Manual override | □Yes No（Optional） |
| Indicator | □Yes No （Optional） |
| Protection class | IP67 |
