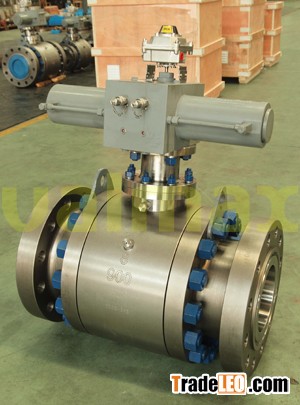

Forged Steel Ball valve, 900LB RF flange end, side entry trunnion mounted type, bolted bonnet, hydraulic actuated.
Model Size: 8"

Body/Bonnet: ASTM A182 F51.
Ball: ASTM A182 F51.
Seat: PEEK.
Stem: ASTM A182 F51.
Face to face dimentision: 737mm.
Valve standard: API 6D.
Flange standard: ASME B16.5.
Sealing pressure test: 169BAR.

Shell pressure test: 230BAR.

Key Feature and Ranges:
- Design basis and product range: API6D / API608 / GB/T12237.
- Face-to-face dimension: ASME B16.10 / GB / T12221.
- Flanged ends: API605/ASME B16.47 / GB / T9113.
- Butt-welding ends: ASME B16.25 / GB / T12224.
- Wall thickness: ASME B16.34.
- Fireproof test: API607.
- Inspection and test: API6D / API598 JB / T9092.
- Product range: 4" - 64", DN100 - DN1600.
- Materials of main parts: A105 LF2, F11, F22, F304, F316, F51.
- Seat materials: PTFE, RTFE or metal hard seal.
