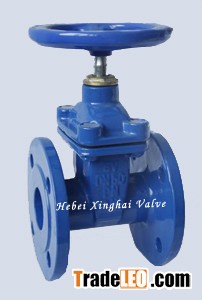

RESILIENT SEATED NON RISING STEM GATE VALVE
Design and manufacture conform DIN3352, BS5163
Flange dimensions conform to DIN PN10/PN16, EN1092-2
Face to face dimension conform to DIN3202 F4, BS5150&BS5163 PN16
Testing conform to API598, Pressure: PN10~ PN25, Class125~Class150
Epoxy coating or Special coating for potable water
Operated by Handwheel operated (gear box be optional)
| NO | PART NAME | METERIAL |
| 1 | BODY | DUCTILE IRON |
| 2 | DISC | DUCTILE IRON with EPDM/BUNA |
| 3 | DISC NUT | DUCTILE IRON |
| 4 | NUT | Q235A |
| 5 | BonNET | DUCTILE IRON |
| 6 | STEM | Q235A |
| 7 | SEAL RING | NBR/EPDM |
| 8 | NUT | BRASS |
| 9 | HAND WHEEL | DI/C.S. |
| 10 | BOLT | Q235A |
| 11 | SEAL RING | NBR/EPDM |
| 12 | LOCATING RING | Q235A |
| DN(mm) | L | B | n-?d | D | D1 | D2 |
| 50 | 150 | 19 | 4-?19 | 165 | 125 | 102 |
| 65 | 170 | 19 | 4-?19 | 185 | 145 | 122 |
| 80 | 180 | 19 | 8-?19 | 200 | 160 | 138 |
| 100 | 190 | 19 | 8-?19 | 220 | 180 | 158 |
| 125 | 200 | 19 | 8-?19 | 250 | 210 | 188 |
| 150 | 210 | 19 | 8-?23 | 285 | 240 | 212 |
| 200 | 230 | 20 | 12-?23 | 340 | 295 | 268 |
| 250 | 250 | 22 | 12-?28 | 405 | 355 | 320 |
| 300 | 270 | 24.5 | 12-?28 | 460 | 410 | 378 |
| 350 | 290 | 26.5 | 16-?28 | 520 | 470 | 429 |
| 400 | 310 | 28 | 16-?31 | 580 | 525 | 480 |
