Model:C-SC903H8K
Send Inquiry

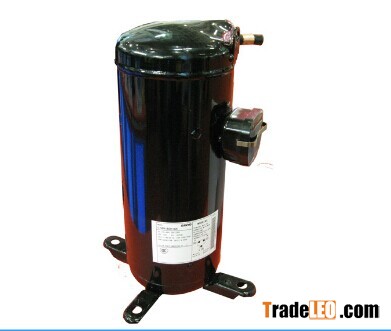

SANYO Scroll Compressor (C-SC903H8K)
SANYO Scroll Compressor(C-SC Series)
R22/R407A/R404
Applicable to ordinary conditions in equivalent conditions, such as standard rating conditions, maximum operating conditions, low temperature conditions, etc.
| Model | Code | Out Put HP | Displ. cm3/rev | 50Hz | 60Hz | Outline Graph Code | ||||||
| Nominal Capacity | COP | Nominal Capacity | COP | |||||||||
| kW | kBTU/h | W/W | BTU/Wh | kW | kBTU/h | W/W | BTU/Wh | |||||
| C-SBR235H38A | 7 | 110.2 | 19.2 | 65.6 | 3.2 | 10.9 | 23.2 | 79.2 | 3.27 | 11.2 | A | |
| C-SBR235H38B | 19.2 | 65.6 | 3.2 | 10.9 | 23.2 | 79.2 | 3.27 | 11.2 | At | |||
| C-SC583H8H | 809 284 88 | 8 | 131.9 | 23.6 | 80.6 | 3.3 | 11.3 | 28.5 | 97.3 | 3.26 | 11.1 | D |
| C-SC583H8K | 809 286 88 | 23.6 | 80.6 | 3.3 | 11.3 | 28.5 | 97.3 | 3.26 | 11.1 | Dt | ||
| C-SC603H8H | 809 281 88 | 137 | 24.5 | 83.6 | 3.31 | 11.3 | 29.6 | 101.1 | 3.29 | 11.2 | D | |
| C-SC603H8K | 809 283 88 | 24.5 | 83.6 | 3.31 | 11.3 | 29.6 | 101.1 | 3.29 | 11.2 | Dt | ||
| C-SC673H8H | 809 291 88 | 9 | 148.8 | 26.5 | 90.5 | 3.29 | 11.2 | 32 | 109.3 | 3.27 | 11.2 | D |
| C-SC673H8K | 809 293 88 | 26.5 | 90.5 | 3.29 | 11.2 | 32 | 109.3 | 3.27 | 11.2 | Dt | ||
| C-SC753H8H | 809 201 88 | 10 | 171.2 | 30.6 | 104.5 | 3.38 | 11.5 | 36.9 | 126 | 3.32 | 11.3 | E |
| C-SC753H8K | 809 203 88 | 30.6 | 104.5 | 3.38 | 11.5 | 36.9 | 126 | 3.32 | 11.3 | Et | ||
| C-SC863H8H | 809 224 88 | 12 | 199.1 | 35.2 | 120.2 | 3.32 | 11.3 | E | ||||
| C-SC903H8H | 809 221 88 | 205.4 | 36.1 | 123.3 | 3.31 | 11.3 | E | |||||
| C-SC903H8K | 809 223 88 | 36.1 | 123.3 | 3.31 | 11.3 | Et | ||||||
