Model:S040FWCX 4003552
CLEARPOINT 3E (Energy Efficient Element)
- Energy-optimised 0.2 bar differential pressure (wet saturated: for an energy-efficient volume flow)
- Performance-optimised volume flow increased by 30%
- Validated in accordance with ISO12500-1 and 3

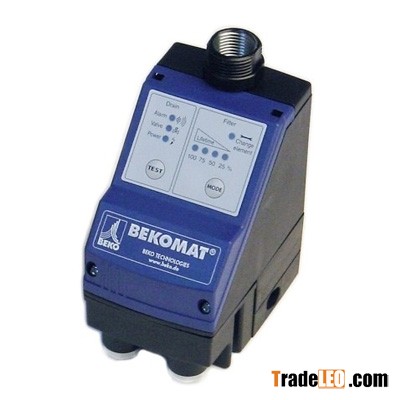

- With EKOMAT 20 / BEKOMAT 20 FM (filter management) or float drain
- Max. operating temperature 60℃
- Max. operating pressure 16 bar
- Filter for natural gas (CNG) on request
| CLEARPOINT 3E(C-N) | S040 | S050 | S055 | S075 | M010 | M012 |
| Pipe size | 3/8” | 1/2” | 1/2” | 3/4” | 1” | 1” |
| Volumeflow 7bar [g]*(m3/h) flow optimised | 46 | 85 | 130 | 195 | 260 | 325 |
| Volumeflow 7bar [g]*(m3/h) energy efficient | 35 | 65 | 100 | 150 | 200 | 250 |
| Dimension data | 75 | 75 | 75 | 100 | 100 | 100 |
| A (in mm) | 28 | 28 | 28 | 34 | 34 | 34 |
| B (in mm) | 395 | 425 | 480 | 495 | 565 | 600 |
| C1 (in mm) | 180 | 210 | 265 | 280 | 350 | 385 |
| C2 (in mm) | 150 | 150 | 150 | 150 | 150 | 150 |
| D (in mm) | 0.25 | 0.31 | 0.42 | 0.87 | 1.12 | 1.26 |
| Volume (I) | 0.75 | 0.85 | 1.2 | 1.7 | 2.1 | 2.2 |
