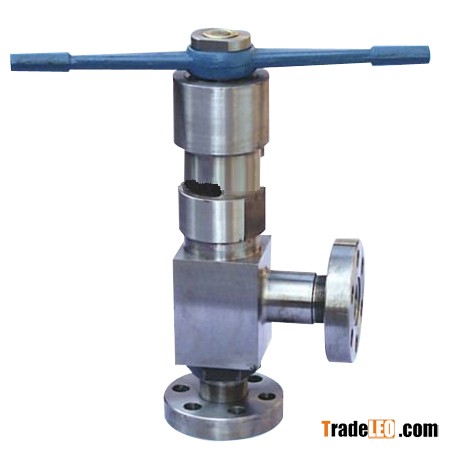

High Pressure Forged Angle Globe Valve
The angle body globe valve design is a simple modification of the basic globe valve. A particular advantage of the angle body design is that it can function as both a valve and a piping elbow. For moderate conditions of pressure, temperature, and flow, the angle valve closely resembles the ordinary globe. The angle valve's discharge conditions are favorable with respect to fluid dynamics and erosion.
Standard:
Design standard: BS 1873, ASME B16.34
Face to Face: As per Manufacturer Standards
Flange end: ASME B16.5
Inspection & Test: API598
Butt-welding: ASME B 16.25/ EN12627
Specifications
1) Size: 1/2” to 8"
2) Pressure: 600LB-1500LB
3) Materials: A105, A182 F304, A182 F316, A182 F316L, F22, F11
4) Temperature of medium: Depends on body material
5) Medium: Water, Oil, Steam, Petroleum
6) End Connections: Flanged, Welded
7) OS&Y Construction, Rising Stem, Plug type
8) Full Port or Reduced Bore
9) Actuations: Manual, Electric, Hydra-Pneumatic Actuator
At present, we have forged steel globe valve, stainless steel globe valve, cast steel globe valve, power station globe valve, DIN globe valve, API globe valve, Y Type globe valve, high pressure globe valve, high temperature globe valve, bellows globe valve, angle type globe valve etc.
