Product

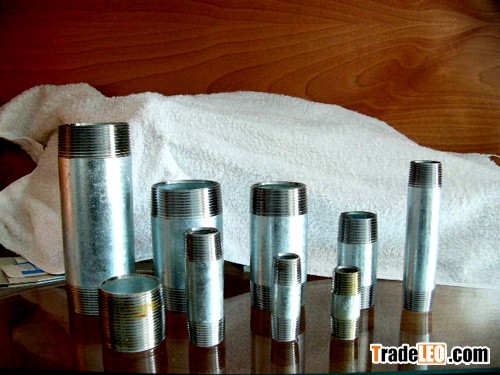

 steel pipe nipples

O.D.
 1/8"-8"

Length
 3/4"-24"; 19mm-500mm; Or as per customer’s request

Thickness
 SCH10 SCH20 SCH40 SCH80 SCH160 XS XXS; CLASS A, CLASS B, CLASS C

Surface
 Hot Dipped Galvanized, Electro Galvanized, Natural finished

Threads
 DIN, BS, NPT, Metric, BSPT, BSP, NPS (ISO7/1, DIN 2999, ANSI B1.20.1)

Dimension
 BS EN10241, ASTM A733, DIN2982

Type
 Close Nipple, Short Nipple, Shoulder nipple, Long Nipple, Running Nipple, Barrel Nipple, King Nipple Hose Nipple and so on

Usage
 Convey Water, Oil, Gas, Steam and so on

Mechanical Properties
 Tensile Strength ≥ 320N/mm2

Yield Strength≥ 195N/mm2

Elongation ≥20%

Hydraulic Test
 Working Pressure: Max 1.5MPa

Test Pressure: Max 2.5MPa

Temperature:
 -20 ~ 120 °c

Lead Time
 Within 30 Days
