4” Flanged      J001039  J001040 M2040 J007420

4” Threaded    J001048  J001049 M2049 M8420

4”Weld    J001057  J001058 M2058 M27263

4” Grooved     J011923  -

1     LubeFitting   Steel       J005195

2     HubAssembly ASTM A536 Ductile Iron    2139714-01

4     Lockhandle   C-1213    J001897  2139481-01

6     StemScrew   C-1213    J001915

7     StemScrew Seal   Buna-N   J005526-227

8     ScrewHousing      C-1018    J001958  J007418

9     Stem       303 SS 316 SS    J001933-002  J001933-008  J007439-002J007439-008

10    SecondarySeal      Buna-N   J005526-214

11    Retainer C-1213    J001942  J007413

12    StemSeal Assembly Buna-N Viton J001951-001 J001951-006

16    Bonnet  ASTM A487   J001972-XXX J007149-XXX

18    BonnetSeal    Buna-N Viton J005526-438 J005531-438 J005526-439 J005531-439J005520-439 J005531-439

19    Gate AISI 1045 Nickel Plated Cast SS ASTM A351Grade CF8M J001926-002 J001926-008

20    Body       A487

21    SeatAssembly Inserts:Ductile Iron ASTM A395 Steel AISI C1040 316 SS ASTM A351 GradeCF8M Annealed

Elastomers: Buna-N Viton     J002207-021J002207-022 J002207-081 J002207-082

22    Pin,Lock Handle   Steel J005420-18732

23    BonnetStud    ASTM A193   J002072

24    BonnetStud Nut    ASTM A194   2709000-09-01

25    BodyStud      ASTM A193   J002074  -

26    BodyStud Nut       ASTM A194   2709000-10-01      -

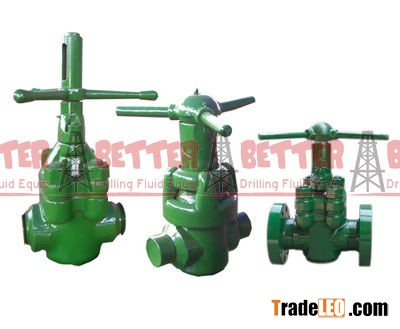

DEMCOMUD GATE VALVE AND MAJOR / MINOR REPARE KIT

2” 2000PSI FULL PORT Threaded-J001026, Weld-J001029, Grooved-J001920,Flanged-J001023

2” 3000PSI FULL PORT Threaded-J001027, Weld-J001030, Flanged-J001024

2” 5000PSI FULL PORT Threaded-J001028, Weld-J001031, Flanged-J001025

3” 2000PSI FULL PORT Threaded-J001045, Weld-J001054, Grooved-J001922,Flanged-J001036

3” 3000PSI FULL PORT Threaded-J001046, Weld-J001055, Flanged-J001037

3” 5000PSI FULL PORT Threaded-J001047, Weld-J001056, Flanged-J001038

4” 2000PSI FULL PORT Threaded-J001048, Weld-J001057, Grooved-J001923,Flanged-J001039

4” 3000PSI FULL PORT Threaded-J001049, Weld-J001058, Flanged-J001040

4” 5000PSI FULL PORT 4 BOLT BonNET DESIGN Threaded-J007420

4” 5000PSI FULL PORT 12 BOLT BonNET DESIGN Threaded-J017263

DEMCO GATE VALVE MAJOR REPARE KIT: includingSTEM SCREW, STEM SCREW SEAL, STEM, SEConDARY SEAL, STEM SEAL ASSEMBLY, BONNETSEAL, GATE, SEAT ASSEMBLY

DEMCO GATE VALVE MINOR REPARE KIT: includingBonNET SEAL, GATE, SEAT ASSEMBLY

Major Repair KitJ025091-10221, J025091-10321, J025091-10421

Minor Repair KitJ025091-00221, J025091-00321, J025091-00421
