Pneumatic Actuated V Port Ball Valve, V Control Regulating  Ball Valve

Application:

Applied to control and regulate the fluid containing fibers or high-viscosity fluid containg solid particles. It can also be used as the isolating valve for its reliable sealing. It is widely eimployed in chemical industry, paper-making, petroleum, electrc power,etc.

Specification

Structure
Wafer: DN25-DN250 (1”-10”)
Flange: DN300-DN500

Pressure:
DIN: PN1.0, PN1.6, PN2.5, PN4.0
ANSI: 150Lb, 300Lb

Features:

*Side entry interal body, durable structure, free from distrortion and leakage.
*Self-lubricated bearing was connected between the upper/bottom stem with body, which makes a light torque.
*Different materials are available upon working conditions
*Good regulation. V port ball will keep flow rate.in a geometry scale. And its rangeability is up to 300:1.
*Compact Structure, easy for installation and maintainment.

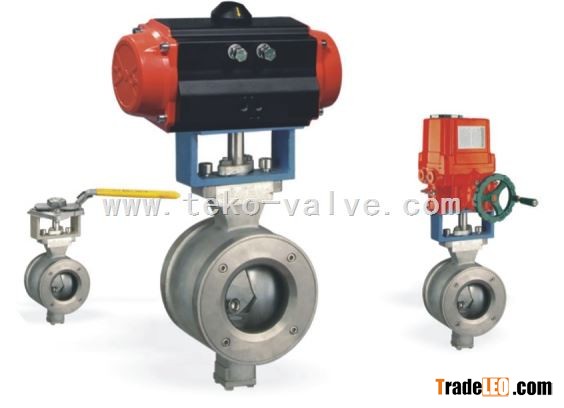

Image:
