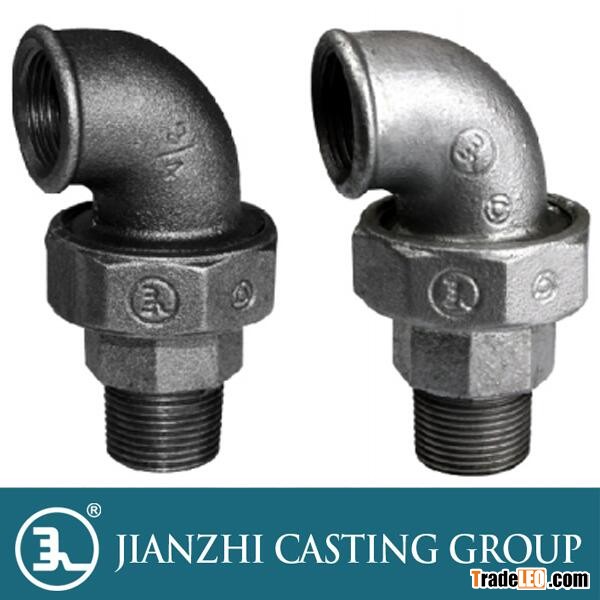

Malleable iron pipe fittings
Suitble for pressure max1.6Mpa,temperature Max 200oC
Application: pipeline transportation for water, oil, gas,etc
Finishing: (Black) Painting,Galvinizing, Elctro-plating
SIZE:3/8"-6"
TYPE:BANDED;BEADED
Standards:
Company Standard:      Q/JZ 01-2015(partially based on JIS B2301)
China Standard:     GB/T3287-2011
International Standards: ISO5922/ISO49/ISO7-1/ISO228
                                 EN1562:1997/EN10242:2003
                                 DIN2950/1692/2999
                                 ANSI/ASTM A197 /A 197M-2000 ANSI/ASME 16.3-92/B1.20.1-83
Mechanical Properties:   Tensile Strenth≥330Mpa; Elongation rate ≥8%; Hardness≤ HB150

1,Hot-Dip Galvanizing banded with BS21 thread ;
2,Packing:packed in the standard export carton
3,Carton:485mm×320mm×180mm;
4,Price:FOB TIANJIN
5,Validity:20days
6,Payment terms: 30% T/T to be deposted on, 70% T/T the balance by B/L copy.
7,Date of delivery: 30DAYS

Cooperate Projects: Olympic Venue of 2008 Olympic Games-Birds Nest; National Center for the Performing Arts;
Main body of Beijing Capital International Airport Terminal 3;Beijing Yintai Center;Fortune Center(CBD),
Global Trade Center,etc...
