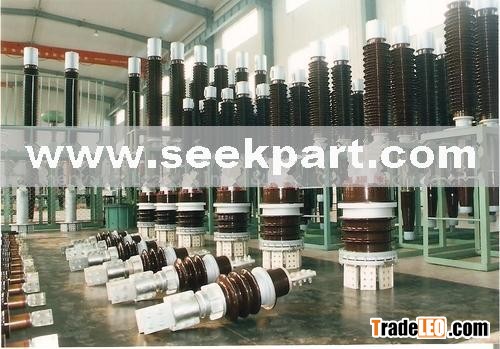

Please refer to below parameters for transformer bushing of Type:

BFW-40.5KV/630A

Code No.:6SP.280.124.10

Total length:H-1094mm

Arching distance:h1-590mm

Length above oil:h2-827mm

Length in oil:267mm

Small shed dia.:d2-240mm

Big shed dia.:d3-270mm

Max dia. in oil:d4-150mm

Installation flange:

Outer diameter:D-290mm

Hole distance:D1-260mm

Inner diameter:D2-200mm

Hole number:8

Hole diameter:14mm

Total weight:37KG

Creepage distance:1300mm

For specific drawing, we will send to you based on your request!
