Delivery Time:45days
Certification:CE

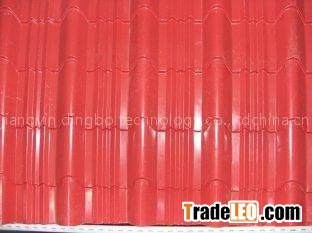

Chain Transmission Steel Glazed Tile Forming Machine for Public Building

Our roof panel forming machine produces different kinds of steel panel tiles for roofs and walls. Tile is for temporary building site, steel structure workshop, and public building and feature fast construction speed. Our tile is durable, has an attractive appearance. This type of roof panel forming machine features high speed, high production, good performance, low labor and is economical. It is the best choice for producing metal sheet cold roll form products.

Rolling color steel to different wave shape. It is suitable for industry and civilian building, warehouse, special building, big span steel structure etc. Light weight, high strength, rich color, convenient construction, quake-proof, rain-proof, long life, no maintenance etc.

This type of roof panel forming machine features high speed, high production, good performance, low labor and is economical. It is the best choice for producing metal sheet cold roll form products.

Technical process:decoiler- guiding&feeding- roll forming- cut to length- discharge

1.???????? Roller station: 18groups

2.???????? Thickness of Material: 0.4-0.8mm

3.???????? Valid material: PPGI, GI, Aluminum sheet, etc

4.???????? Forming Speed: 10-15 m/min

5.???????? Transporting Type: chain transmission

6.???????? Main Power:?5.5kw

7.???????? Electrical control system: PLC control system with touch screen

8.???????? Cutting type: Hydraulic cutting

9.???????? Cutting length tolerance: 0.5mm
