Loadcell HM9B - Truck Scale Accessories

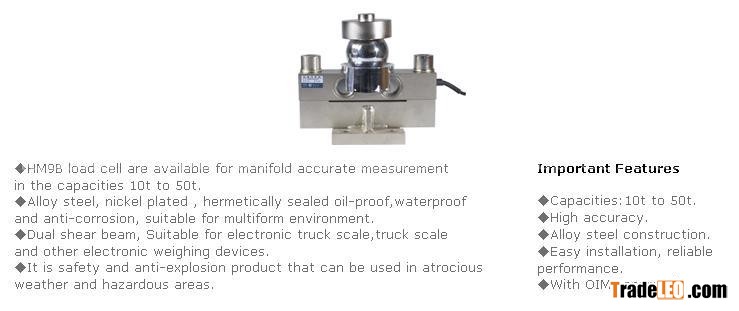

HM9B laod cell are available for manifold accurate measurement in the capacity 10t to 50t.
Alloy steel, nickel plated, hermetically sealed oil-proof, waterpoof and anti-corrosion, suitalbe for multiform environment
Dual shear beam, suitable for electronic truck scale, truck scale and other electronic weighing devices.
It's safety and anti-explosion product that can be used in atrocious weather and hazardous areas.
important Features
Capacity: 10t to 50t
High Accuracy
Alloy Steel Construction
Easy Installation, reliable performance.
With OIML approval.
| Capacity | t | 10/20/25/30/40SE/40/50 | ||||
| Accuracy Class | C1 | C2 | C3 | A5M | B10M | |
| Approvals | OIML R60 C3 | |||||
| Maxium Load Cell Verfication Interval | n max | 1000 | 2000 | 3000 | 5000 | 10000 |
| Minimum Load Cell Verification Interval | v min | Emax/3000 | Emax/5000 | Emax/7500 | Emax/15000 | Emax/10000 |
| Combined Error | (%FS) | <=±0.050 | <=±0.030 | <=±0.020 | <=±0.026 | <=±0.050 |
| Creep | (@FS/30min) | <=±0.039 | <=±0.023 | <=±0.016 | <=±0.017 | <=±0.040 |
| Temperature Effect On Sensitivity | (@FS/10 ) | <=±0.028 | <=±0.017 | <=±0.011 | <=±0.013 | <=±0.040 |
| Temperature Effect On Zero | (@FS/10 ) | <=±0.047 | <=±0.029 | <=±0.019 | <=±0.014 | <=±0.020 |
| Output Sensitivity | (mv/v) | 2.0 ±0.002 | ||||
| Input Resistance | Ω | 700±7 | ||||
| Output Resistance | Ω | 703±4 | ||||
| Insulation Resistance | MΩ | >=5000(50VDC) | ||||
| Zero Balance | %FS | 1.5 | ||||
| Temperature, Compensated | from -10 to +40 | |||||
| Temperature, Allowed | from -35 to +65 | |||||
| Excitation, Recommended | V | 5 to 12(DC) | ||||
| Excitation, Max | V | 18(DC) | ||||
| Safe Overload | %FS | 120 | ||||
| Ultimate Overload | %FS | 150 |
