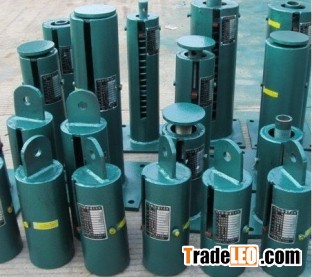

58H, 58 V and 80V Constant Force Spring Hangers

1. Applicable Range
The 58H, 58 V and 80V constant force spring hangers (US ITT Technology) are applicable to 38mm (1 1/2") to 508mm (20") displacement, 12.7mm (1/2") interval and 12daN to 39,690daN loading capacity.
2. Classification and Model


Horizontal Type Constant Force Spring Hangers

58H
A Type, B Type, C Type, E Type, G Type

Vertical Constant Force Spring Hangers
58V
A Type, B Type, C Type, D Type, E Type

Support Type Constant Force Spring Hangers
80V
F Type

A Type-Duplex Pull Rod Connection
B Type-Single Hanger Plate Connection
C Type-Double Hanger Plate Connection
D Type-Top Surface Connection
E Type-Pedestal Connection
G Type-Parallel Connection of Constant Force Spring Hangers
