Model No. : RG59 Standard-shield/Quad-shield / Messengered
Product Origin: China
Certifications: ISO9001 UL CCC
Brand Name: Tianba
Other Price Terms: FOB, CFR, CIF
Payment Terms: T/T, L/C
Supply Ability: 20,000km/month
Minimum Order: 1 x 20'FCL
Delivery Lead Time: 30 days after receipt of T/T or L/C

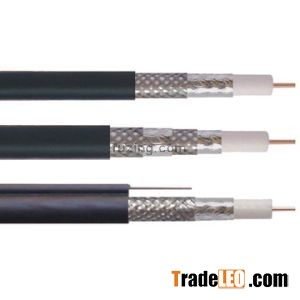

RG59
Detailed Product Description
Specifications:
1) Inner conductor: .81Cu, CCS
2) Dielectric: .7PE-form
3) Foil: AL+Pol, AL+Pol+AL, bonded AL+Pol
4) Braiding wire material: Cu, AL-Mg, T-C
5) Braiding wire diameter: 0.12, 0.15, 0.16mm
6) Wire net number: 32, 48, 64, 80, 96, 112 and up
7) Coverage: 30, 40, 50, 60, 80, 90% and up
8) Jacket:
a) Standard shield: OD6.1mm
b) Quad-shield: OD6.6mm
c) Messengered: OD6.2mm
9) Messengered diameter: .20mm steel
10) Custom orders accepted

Inner packing:
100m/roll, 100m/plastic(paper) -roll, 305m(1000ft) /wooden drum

Outer packing:
Carton, pull out box, wooden drum
IF YOU INTERESTED IN THIS PRODUCT , YOU CAN FAX TO ME FIRST , AND TELL ME YOUR EMAIL ADD
