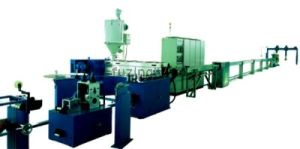

This machine is designed to extrude cable inner sheath and outer sheath. It is suitable to extrude LDPE. MDPE. HDPE material.
II. Technical characteristics
1. Line construction speed       110m/min.
 Line producing speed              100m/min.
(I. D/O. D. : #6/#8mm, without tape and steel wire, without printing)
 Line producing speed              max.60m/min. (with printing)
 Line producing speed              60m/min. (I. D/O. D. :#6/#8 with steel tape, steel wire)
 Line producing speed              50m/min. (I. D/O. D. :#6/#8 with aluminum tape)
2. Cable core dia.               #2.0-#10.0-mm
3. Cable-sheathed outer dia.
(ordinary product)           #5.0—#15.0mm (Mini. dia#8.0 with printing)
      Extruding max. dia.          #25.0mm
4. Extruding type               SJ90×25
5. The reel size of pay-off         800~1600mm
6. The reel size of take-up         1000~1800mm
7. The total consuming power:         about 110kw, 50Hz ,380v±10%, 3 phase 5 wire.
8. Outline size:                     about 63m (L) ×5.8m (W) ×4m(H)
9. Eq. weight:                      about 15T.
10. Operating environment
  Operating temperature:            - 5°∽40°
  Relative humidity:               40∽90% without congealing
