Brand:TX
Model:T2.5
Send Inquiry

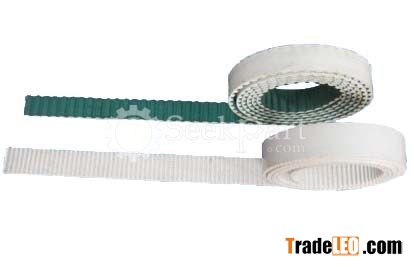

Open PU Timing Belts
MOQ: 100 meters
| Rubber timing belt | ||||||
| Model, type, dimension table | ||||||
| Pict Pict | ||||||
| Figure Trapezoid teeth | HTD Circle-arc teeth | |||||
| Trapezoid teeth rubber timing belts | ||||||
| Teeth Type | Type | P(mm) | ht(mm) | hs(mm) | 2β° | |
| Birtish Teeth | MXL | 2.032 | 0.51 | 1.14 | 40 | |
| XXL | 3.175 | 0.76 | 1.52 | 50 | ||
| XL | 5.08 | 1.27 | 2.3 | 50 | ||
| L | 9.525 | 1.91 | 3.6 | 40 | ||
| H | 12.7 | 2.29 | 4.3 | 40 | ||
| XH | 22.225 | 6.35 | 11.2 | 40 | ||
| XXH | 31.75 | 9.53 | 15.7 | 40 | ||
| Meteric Teeth | T2.5 | 2.5 | 0.7 | 1.3 | 40 | |
| T5 | 5 | 1.2 | 2.2 | 40 | ||
| T10 | 10 | 2.5 | 4.5 | 40 | ||
| T20 | 20 | 5 | 8 | 40 | ||
| AT5 | 5 | 1.2 | 2.7 | 50 | ||
| AT10 | 10 | 2.5 | 5 | 50 | ||
| AT20 | 20 | 5 | 8 | 50 | ||
| Pict Pict | ||||||
| STPD/STS Arc teeth | RPP/HPPD Arc teeth | |||||
| Arc Teeth rubber timing belts | ||||||
| Teeth Model | Type | P (mm) | ht(mm) | hs(mm) | ||
| HTD | 3M | 3 | 1.17 | 2.4 | ||
| 5M | 5 | 2.06 | 3.8 | |||
| 8M | 8 | 3.36 | 6 | |||
| 14M | 14 | 6.02 | 10 | |||
| 20M | 20 | 8.4 | 13.2 | |||
| STPD/STS | S2M | 2 | 0.76 | 1.36 | ||
| S3M | 3 | 1.14 | 1.9 | |||
| S4.5M | 4.5 | 1.71 | 2.81 | |||
| S5M | 5 | 1.91 | 3.4 | |||
| S8M | 8 | 3.05 | 5.3 | |||
| S14M | 14 | 5.3 | 10.2 | |||
| RPP/HPPD | P2M | 2 | 0.76 | 1.36 | ||
| P3M | 3 | 1.15 | 1.9 | |||
| P5M | 5 | 1.95 | 3.5 | |||
| P8M | 8 | 3.2 | 5.5 | |||
| P14M | 14 | 6 | 10 | |||
| 8YU | 8 | 3.02 | 5.2 | |||
