Model:zl 15F ,ZL18F,ZL20F
Send Inquiry

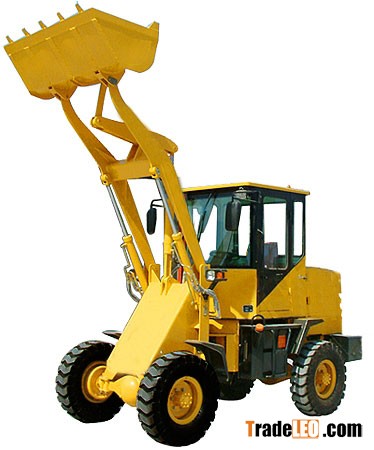

ZL15F wheel loader specification
Description | Specifications | Unit |
| Buckdt capacity | 0.7 | m3 |
| Rated load | 1500 | kg |
| Dumping clearance | 2950 | mm |
| Dumping reach | 1050 | mm |
| Raising time | <5 | s |
| Total cycling time | 9.5 | s |
| Max.tractive force | 30 | KN |
| Max.breakout force | >30 | KN |
| Articulation angle | 38 | o |
| Min.turn radius | 3200 | mm |
| Climb ability | 38 | o |
| Wheel base | 2170 | mm |
| Tread | 1430 | mm |
| Traveling speed | 2400 | rpm |
| 1 stF/R | 10 | km/h |
| 2 ndF/R | 27 | km/h |
| 3 rdF | 21 | km/h |
| 4 thF | 35 | |
| Engine | ||
| Model | xinchai a498BT1 | |
| Rated power/Ratedspeed | 36.8/2400 | |
| L×W×H | 5060×1690×2630 | mm |
| Operating weight | 3.4 | t |
| Tires |
