Model:W11
Rolling machine -3 roller rolling machine:
Product Description

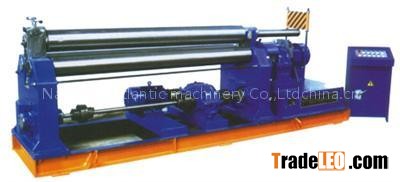

Symmetrical 3-Roll Rolling Machine (W11-series)
Product Description 3-, and 4-roll bending machine, as the shaping equipment for bending, rolling, leveling of metal plate, is widely used in the industries of shipbuilding, boiler, airspace, water and electricity, decoration and metal structure, and features complete specifications, multiple types, well-designed structure, and advanced techniques to meet customers' requirements.
Model: W11-series
| Model | Maximum thickness mm | Maximum width mm | Yield limit mpa | Bending speed M/min | Minimum diameter under full load mm | Top roller dimater mm | Bottom roller dimater mm | Focus space of two lower rollers mm | Motor power kw | Gross weight T | Dimensions (L X W X M) mm |
| W11-6x1500 | 6 | 1500 | 265 | 7.16 | 380 | 180 | 160 | 210 | 5.5 | 2.6 | 3310x1210x1330 |
| W11-6x2000 | 6 | 2000 | 265 | 7.16 | 380 | 180 | 160 | 210 | 5.5 | 3.1 | 3810x1210x1330 |
| W11-6x2500 | 6 | 2500 | 265 | 7.16 | 500 | 190 | 170 | 260 | 7.5 | 4.6 | 4310x1210x1330 |
| W11-6x3200 | 6 | 3200 | 265 | 6.46 | 500 | 240 | 200 | 310 | 11 | 7.2 | 5200x1400x1200 |
| W11-8x2000 | 8 | 2000 | 265 | 7.16 | 450 | 190 | 170 | 260 | 7.5 | 4.1 | 3810x1210x1330 |
| W11-8x2500 | 8 | 2000 | 265 | 6.46 | 500 | 240 | 200 | 310 | 11 | 6.7 | 4500x1420x1610 |
| W11-12x2000 | 12 | 2000 | 265 | 6.46 | 500 | 240 | 200 | 310 | 110 | 6.7 | 4050x1420x1610 |
| W11-12x2500 | 12 | 2500 | 265 | 5 | 750 | 260 | 220 | 330 | 15 | 6.3 | 5000x1500x1300 |
| W11-12x3000 | 12 | 3000 | 265 | 5 | 650 | 280 | 240 | 360 | 22 | 12.1 | 5500x1500x1300 |
| W11-16x2000 | 16 | 2000 | 265 | 5 | 750 | 260 | 220 | 330 | 15 | 5.8 | 4500x1500x1300 |
| W11-16x2500 | 16 | 2500 | 265 | 5 | 750 | 280 | 240 | 360 | 22 | 8.5 | 5000x1500x1300 |
| W11-16x3200 | 16 | 3200 | 265 | 5 | 900 | 340 | 280 | 440 | 30 | 15.6 | 6300x1600x1900 |
| W11-20x2000 | 20 | 2000 | 265 | 5 | 750 | 280 | 240 | 360 | 22 | 7.8 | 4500x1500x1300 |
| W11-20x2500 | 20 | 2500 | 265 | 5 | 850 | 340 | 280 | 440 | 30 | 14.7 | 5600x1600x1900 |
| W11-25x2000 | 25 | 2000 | 265 | 5 | 850 | 340 | 280 | 440 | 30 | 13.2 | 5100x1600x1900 |
| W11-25x2500 | 25 | 2500 | 265 | 4.5 | 900 | 380 | 300 | 490 | 37 | 24.7 | 6000x1600x2150 |
| W11-30x2000 | 30 | 2000 | 265 | 4..5 | 900 | 380 | 300 | 490 | 37 | 23 | 5500x1460x2150 |
| W11-30x2500 | 30 | 2500 | 265 | 4.34 | 1100 | 460 | 380 | 600 | 45 | 25 | 6900x2300x2800 |
| W11-30x3000 | 30 | 3000 | 265 | 5 | 1200 | 480 | 400 | 600 | 45 | 32 | 7400x2300x2600 |
| W11-30x3200 | 30 | 3200 | 265 | 5 | 1200 | 500 | 400 | 600 | 45 | 35.2 | 7600x2300x2600 |
| W11-40x2000 | 40 | 2000 | 265 | 5 | 1200 | 480 | 400 | 600 | 45 | 28.7 | 6400x2300x2800 |
| W11-40x2500 | 40 | 2500 | 265 | 5 | 1400 | 500 | 400 | 600 | 45 | 34.2 | 6900x2300x2800 |
| W11-40x3000 | 40 | 3000 | 265 | 4.37 | 1600 | 500 | 425 | 650 | 60 | 36 | 8000x1980x2250 |
| W11-50x3000 | 50 | 3000 | 265 | 4 | 2000 | 600 | 480 | 700 | 75 | 71.5 | 9900x3100x3500 |
| W11-60x3000 | 60 | 3000 | 265 | 4 | 2000 | 700 | 560 | 800 |
Nantong Atlantic Machinery Co.,Ltd is a jointed venture with investment from HongKong and Germany,founded in 1969,which specialized in making machines for sheet shearing and bending ."Atlantic"brand machines have a good reputation at home and abroad ,machines produced here are with DIN standard.
Here we can ensure good quality and reasonable price machines for you .Welcome your arrival and looking forward to cooperating with you !
