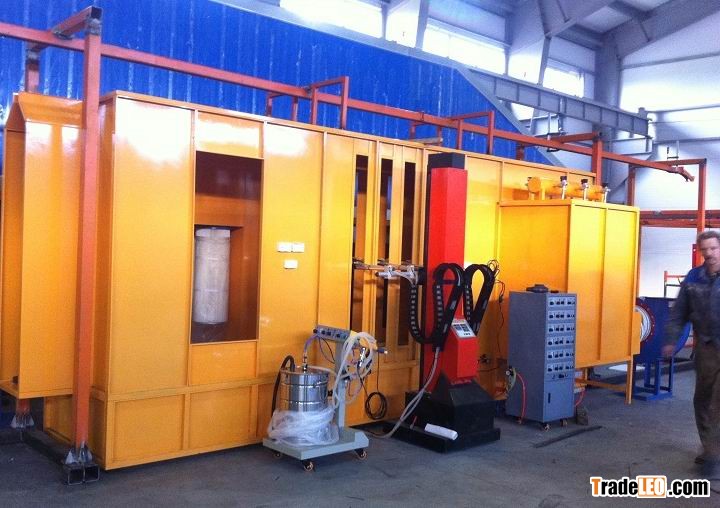

Este cabina de pintura para la planta automatica de pintura en polvo
 http://www.equipospintura.coDimensiones exterior: 6000x1200X2600mm (LXWXH)
Materiales
Panel de cabina Galvanized Steel 1.2mm
Estructura A3 Steel Profile
Sealing Glue Form Glue
Powder Cleaning System Air Cylinder
materials Used
Surface Panel Galvanized Steel
frame Structure Galvanized Steel
Filters 325*660mm Long Fiber Non-Woven Filter, 12 pieces filters
Reverse Air Blow Valves and Pneumatic Cylinders
Sealing Glue Form Glue
Recycle Fan Centrifugal Fan x 1 Set
Circulation Fan Box Galvanized Steel with powder coated surface
Technical Parameters
Recycle Method Filter Recycle with Rotating Wings auto reverse blow
Fan Power 5.5KW
Full Pressure 1911Pa
Flux 10029m3/h
Structure Assembling Type
