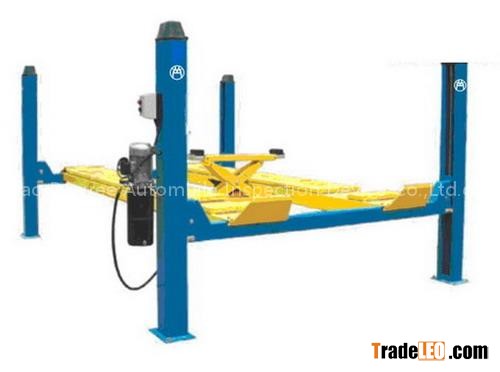

Four Post Hydraulic Lift Used For Alignment--DFPA609/DFPL609
Features:
1.Cable-driven lifting system
2.Heavy duty sliding turnplate
3.Maintenance free load bearing
4.Four points automatic safety locks
5.Adjustable self-lock system pledge the vehicle safe and balanced in 6.different height
7.Multiple safety locks pledge absolute safety in any height
8.Slideway for other equipment inside of the runway
9.Integrative hydraulic system make the working environment quiet
10.Compact column design,short drive-up ramp,save space
11.Immovable runway
12.Air lock release
13.Automatic safety locks

Specifications:
1.Working noise : ≤ 75dB ( A )
2.Rise time : 60s
3.Drop time : 90s
4.Working temperature : -5 ℃ ~ 40 ℃
5.Motor power : 2.2Kw/220 ~ 380V
6.Working pressure : 14Mpa
7.relative humidity : 80%
8.Using altitude : ≤ 1000m
9.lifting capacity : 7000lbs/3200kgs
10.Lifting height : 1750mm
11.Width between posts : 2703mm
12.Width between runways : 935mm
13.Outer dimensions/L*W*H: 5295 × 3083 × 2094mm
14.20 container : 8sets
15.40 container : 16 sets
