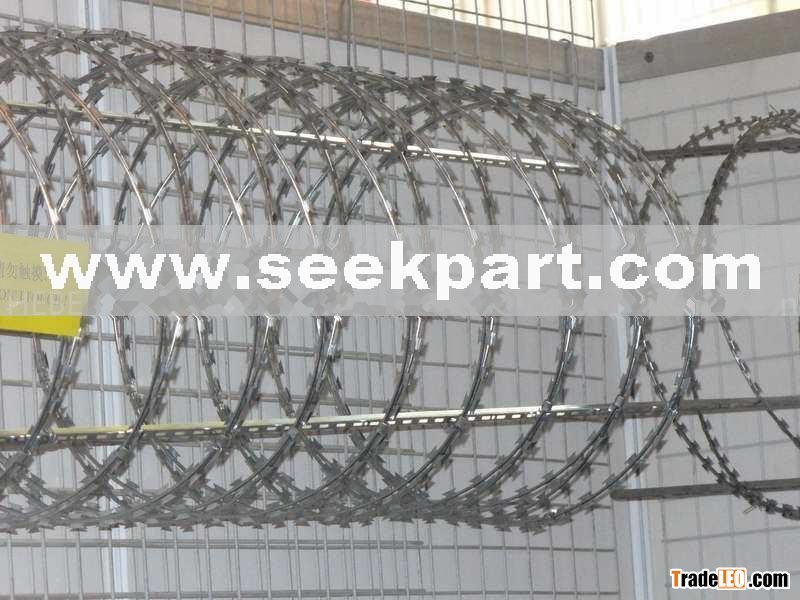

Concertina Single Coiling razor wire is installed without clips; it runs in natural loops on walls or fencings. Single coiling razor wire is costless and can be easily installed.
Razor Blade Specification:
Reference | Blade Style | Thickness | Wire Dia | Barb | Barb | Barb |
BTO-10 |
| 0.5±0.05 | 2.5±0.1 | 10±1 | 13±1 | 25±1 |
BTO-12 |
| 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 25±1 |
BTO-18 |
| 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 35±1 |
BTO-22 |
| 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 36±1 |
BTO-28 |
| 0.5±0.05 | 2.5 | 28 | 15 | 46±1 |
BTO-30 |
| 0.5±0.05 | 2.5 | 30 | 18 | 46±1 |
CBT-65 |
| 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 101±2 |
Barbed Tape Concertina (BTC);Barbed Tape Obstacle (BTO)
Standard materials are either galvanized or stainless steel.
Standard packages products are shown in the tables above, special specifications available on request.
Barbed Tape Wire Specification:
| Outside Diameter | No. of Loops | Standard Length per Coil | Type | Notes |
| 450mm | 33 | 8M | CBT-65 | Single coil |
| 500mm | 41 | 10M | CBT-65 | Single coil |
| 700mm | 41 | 10M | CBT-65 | Single coil |
| 960mm | 53 | 13M | CBT-65 | Single coil |
| 500mm | 102 | 16M | BTO-10.15.22 | Cross type |
| 600mm | 86 | 14M | BTO-10.15.22 | Cross type |
| 700mm | 72 | 12M | BTO-10.15.22 | Cross type |
| 800mm | 64 | 10M | BTO-10.15.22 | Cross type |
| 960mm | 52 | 9M | BTO-10.15.22 | Cross type |
