Model:pipeI.D.200mm-900mm
- with good floating, it can be used for sand dredging, mud dredging, sea water dredging and oil pipe using.
- light weight and easy installation
- pipe I.D from 200mm~900mm
- corrosive resistance
- cost performance, because you will contact with the manufacturer directly.
We are manufacturer, so the price is lower than some other trading companies. If you want to buy our products, just get touch with me: liu.yunfeng at yahoo.cn. I can also communicate with you in German.

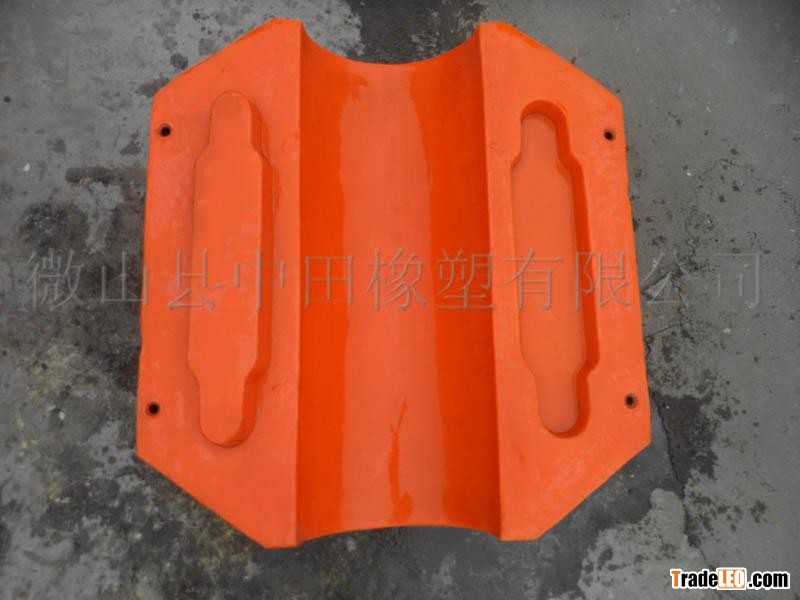

Floater | |||||||
The shell of MDPE floater is made from excellent flexibility of medium density polyethylene material, inside of shell is filled with high strength polyurethane foam. | |||||||
Pipe I.D. | Thickness of Pipe | Floater I.D. | Floater O.D. | Floater Length | Thickness of Plastic | Net Buoyancy | Remark
|
mm | mm | mm | mm | mm | mm | KGS/Floater | |
200 | 6 | 220 | 500 | 800 | 7 | 200 |
2 pieces per complete floater |
285 | 6 | 300 | 700 | 1200 | 7 | 420 | |
350 | 6 | 375 | 1100 | 1100 | 7 | 920 | |
400 | 8 | 414 | 1100 | 1200 | 8 | 1020 | |
414 | 8 | 430 | 1200 | 1200 | 8 | 1200 | |
450 | 8 | 480 | 1300 | 1300 | 8 | 1500 | |
500 | 10 | 580 | 1400 | 1500 | 9 | 2219 | |
550 | 10 | 580 | 1400 | 1600 | 10 | 2310 | |
600 | 10 | 630 | 1400 | 1700 | 11 | 2400 | |
650 | 10 | 680 | 1480 | 1800 | 11.5 | 2930 | |
700 | 12 | 730 | 1600 | 1900 | 12 | 3593 | |
750 | 12 | 780 | 1600 | 2000 | 13 | 3800 | |
800 | 15 | 830 | 1800 | 2000 | 14 | 4800 | |
850 | 15 | 880 | 1800 | 2200 | 15 | 5140 | |
900 | 18 | 940 | 2200 | 2500 | 16 | 8180 | |
Other sizes of floaters can be made upon request | |||||||
