Model:ASTMA240/A240M,JISG4305

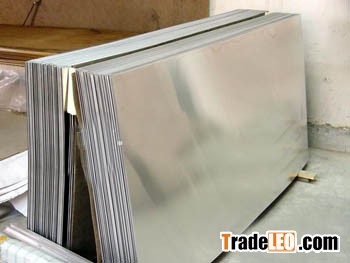

Stainless steel sheet
Standard:ASTMA240/A240M,JISG4305
*Cold rolled stainless sheet
Thickness:0.3mm-3mm
Width:1000mm-2000mm
Surface:2B,BA
Usual specification:0.3-3mmx1000mmx2000mm;0.3-3mmx1219mmx2438mm
*Hot rolled stainless sheet
thickness:3-12mm
width:1500mm-3000mm
Surface:NO.1
Usual specification:3-12mmx1500mmx6000mm;3-12mmx1800x6000mm,3-12mmx2000x6000mm
Stainless steel sheet 201 | Chemical composition | ||||||||
C
| Si | Mn
| P
| S | Ni | Cr | Cu | N | |
Min Max |
0.150 |
1.00 | 8.00 10.50 |
0.060 |
0.030 | 1.00 3.00 | 13.50 16.00 | 1.00 2.00 |
0.20 |
Stainless steel sheet 304 | Chemical composition | |||||||
C
| Si | Mn
| P
| S | Ni | Cr | N | |
Min Max |
0.080 |
1.00 |
2.00 |
0.045 |
0.030 | 8.00 10.5 | 18.00 20.00 |
|
| 0.046 | 0.60 | 0.85 | 0.026 | 0.002 | 8.04 | 18.23 | 0.056 |
Feature:
1>Standard and material:AISI:201,202,304,304L,316,316L,321,410,409L,430 etc
GB:1Cr18Mn8Ni5N,0Cr18Ni9,00Cr19Ni10,0Cr17Ni12Mo2,00Cr17Ni14Mo2, 0Cr18Ni10Ti,1Cr13,etc
JIS: sus201,sus201,sus304,sus304L,sus316,sus316L,sus321,sus430 etc
DIN:X5CrNi189,X2CrNi189,X5CrNiMo1810,X2CrNiMo1810,X10CrNiTi189, X10Cr13,X7Cr13 etc
2>Surface Finish:2B,BA,HL,Brush,NO.1-NO.4
3>Application:construction field,industry instruments,decoration(safe doors,gatefitting,furniture,kitchen wares),machinary, hardware fields and so on.
4>Certification:The quality management system is in conformity with GB/T19001-2000--ISO 9001:2000 sdandard.
5>Tolerance:Meet the factory's stndard.
Delivery Time:about 15-25days after the confirmation of the deposit.
Payment terms:By T/T30% in advance,balance against the copy of bill of lading or by irrevocable L/C at sight.
| surface finish | Characteristics and application | ||||
| 2B | The surface brightness and flatness of 2B is better than 2D. Then through a special surface treatment to improve its mechanical properties, 2B could nearly satisfy comprehensive uses. | ||||
| NO.3 | NO.3 Polished with abrasive belt of git#100#200,have better brightness with discontinuous coarse stria, used as inner and external ornaments for building, electrical appliances and kitchen utensils etc. | ||||
| NO.4 | NO.4 Polished with abrasive belt of grit#150#180,have better brightness with discontinuous coarse stria, but thinner than NO.3, are used as bathtub buildings inner and external ornaments electrical appliances kitchen utensils and food processing equipment etc, | ||||
| HL | HL Polished with abrasive belt of grit#150#320 on the NO.4 finish and has continuous streaks, mainly used as buildings ornaments elevators, door of building, frontal plate etc. | ||||
| 8K | 8K The product have excellent brightness and prefer reflexivity can be the mirror | ||||
| BA | BA Cold rolled, bright annealed and skin-passed, the product have excellent brightness and good reflexivity like mirror, kitchen apparatus, ornament etc | ||||
