Model:DCS
Applicable range:

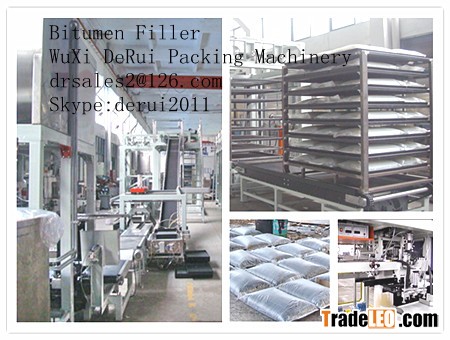

The bitumen filling line specially used for filling high temperature liquid such as bitumen.
Components:
【Filling system】 this machine is composed of feeding bag machine, filling and sealing machine(can choose heat insulation system),loading plate system, pallet feeding system, stacker, belt conveyor, electrical control, pneumatic control, vacuum system and so on.
〖heat insulation filling &sealing machine〗components: feeding system、vacuum system、hopper、automatic feeding bags machine、automatic bitumen filling machine、automatic catching bags machine、automatic ultrasonic sealing machine、falling bags conveyor、heat insulation system、hydraulic station and so on.
【stacking system】complete equipment is composed of in feeding conveyor、tidying bags equipment、bags pushing equipment、feeding plate equipment、electrical control、pneumatic control, vacuum system and so on.
〖bag pushing equipment〗components: servo sports system、bag pusher arm、bag pusher orientation system、frame and so on.
〖feeding plate equipment〗 components: cooling frame input conveyor、stacker roller conveyor、hydraulic lift system and cooling frame output conveyor.
Technical parameters:
Specification | 25kg/bag (can be customized) |
Filling range | (can be customized) |
Filling speed | 160bag/hour |
Accuracy | ±0.5% |
Voltage | AC380V 50Hz±2Hz |
Air source | Flux 0.1m3/min pressure 0.4-0.6MPa |
Power | 35KW |
Filling temperature | 100℃-120℃(can be customized) |
Design temperature | ≤120℃(can be customized) |
Ambient temperature | 0℃～40℃ |
Bag size | Length 800-950mm、width450-550mm |
