Model:GR-01

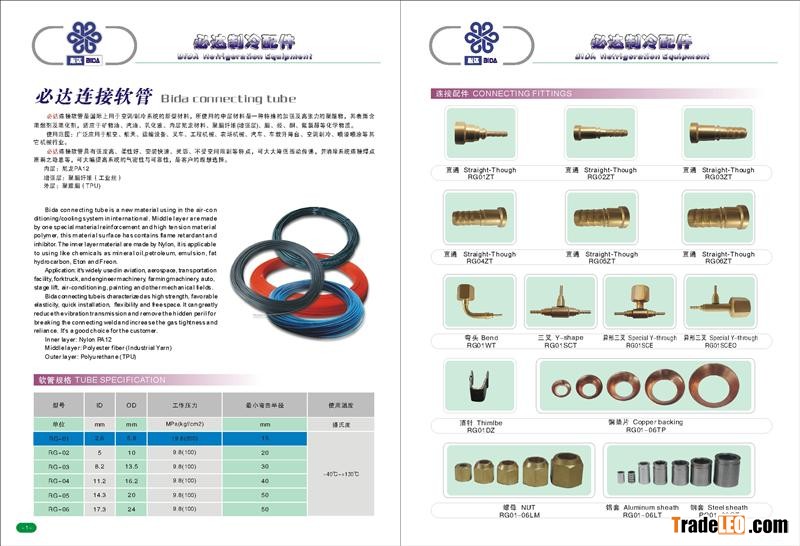

Bida connecting tube is a new material using in the air-conditioning/Cooling system in international. Middle layer are made by one special material reinforcement and high tension material polymer, this material surface has contains flame retardant and inhibitor. The inner layer material are made by Nylon, it is applicable to using like chemicals as mineral oil, petroleum, emulsion, fat hydrocarbon, Eton and Freon.
Application: It’s widely used in aviation, aerospace, transportation facility, fork truck and engineer machinery, farming machinery, auto, stage lift, air-conditioning, painting and other mechanical fields.
Bida connecting tube is characterized as high strength, favorable elasticity, and quick installation, flexibility and free space. It can greatly reduce the vibration transmission and remove the hidden peril for breaking the connecting weld and increase the gas tightness and reliance. It’s a good choice for the customer.
Inner layer:Nylon PA12
Middle layer: Polyester fiber (Industrial Yarn)
Outer layer: Polyurethane (TPU)
TUBE SPECIFICATION
Item No. | Inner Dimension (mm) | Outer Dimmension (mm) | Work Pressure Mpa(kgf/cm2) | Minimum bend radius (mm) | Temperature (Celsius degrees) |
RG-01 | 2.6 | 5.8 | 19.6(200) | 15 | -40℃～+130℃ |
RG-02 | 5 | 10 | 9.8(100) | 20 | |
RG-03 | 8.2 | 13.5 | 9.8(100) | 30 | |
RG-04 | 11.2 | 16.2 | 9.8(100) | 40 | |
RG-05 | 14.3 | 20 | 9.8(100) | 50 | |
RG-06 | 17.3 | 24 | 9.8(100) | 60 |
