Model:bjf

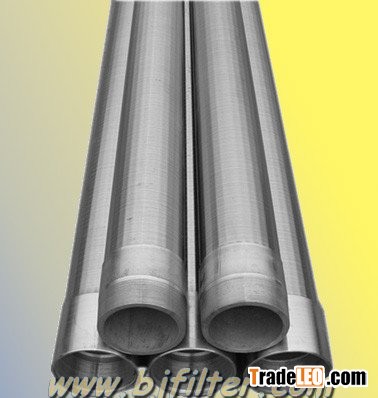

stainless steel V-wire water well screen
The continuous slot wire-wrap screen ( jhonso wire-wrap well screen ) is used throughout the world for water, oil, and gas wells, and for environmental well completions. It is the dominant screen type used in the water well industry. this type of screen is constructed by winding cold rolled triangular V-shaped wire around a circular array of longitudinal rods. the wire is welded to the rods and produces a rigid unit that has high strength and minimum weight. http://www.bjfilter.com
Technical parameters
Specification (wedge wire): | Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 |
Specification (support rod): | Width(mm): 2.30 3.00 3.30 3.70 |
Note: other specifications available as per request | |
Slot size | 0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request. |
Material: | galvanized low carton (LCG), stainless steel (304,316 etc.) |
Length | up to 6 meters. |
Diameter | from 25mm to 1200mm. |
End connection | Plain beveled ends, flanged or threaded couplings |
