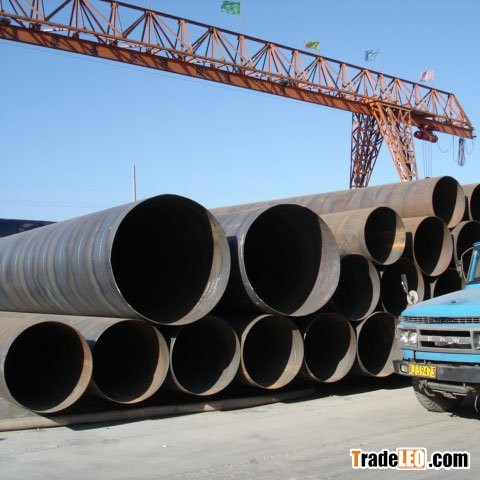

SSAW Steel Pipe

Spiral Submerged-Arc Welded Steel Pipe

Standard: API 5L, API 5CT, ASTM A252, ASTM 53, EN10217, EN10219, BS, JIS, IS,

Out Diameter: 219.1 mm – 4064mm (8” -160”)

Wall Thickness: 3.2mm- 25.4mm

Length: 6m – 22 m

Steel Grade:

API 5L: GR B, X42,X46, X56, X60,X65,X70

ASTM A252 GR 1, GR 2, GR 3

ASTM A53: GR A, GR B, GR C

BS 4360: Grade 43, Grade 50

EN: S275, S275JR, S355JRH, S355J2H

Surface: Fusion bond Epoxy coating, Coal Tar Epoxy, 3PE, Vanish Coating, Bitumen Coating, Black Oil coating as per customer’s requirement

Test: Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Bending Test, Blow Test, Impact Test), Exterior Size Inspection, Hydrostatic Test, X-ray Test.
Mill Test Certificate: EN 10204/3.1B
