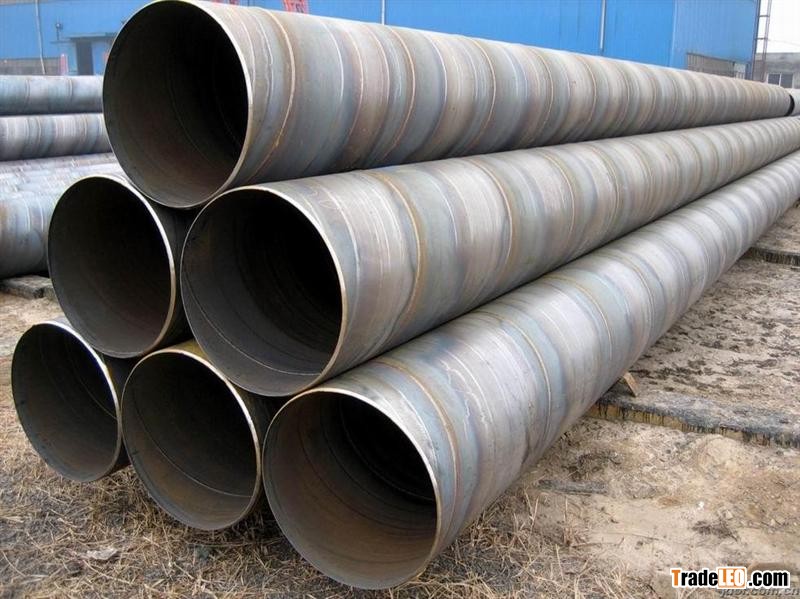

Spiral Submerged- Arc Welded Steel Pipe
- Used for low pressure liquid delivery, such as water, gas, and oil; construction and piling
- API 5L, API 5CT, ASTM A252, ASTM 53, EN10217, EN10219, BS, JIS, IS
- EN10217, EN10219, API 5L PSL1/ PSL2, API 5CT
- 219.1 mm – 2540mm (8"-100")
- 3.2mm - 25.4mm
- 6 – 22 m
- API 5L: GR A, GR B, X42,X46, X56, X60,X65,X70
ASTM A252 GR 1, GR 2, GR 3
ASTM A53: GR A, GR B, GR C, GR D
BS 4360: Grade 43, Grade 50
EN: S275, S275JR, S355JRH, S355J2H - Fusion bond Epoxy coating, Coal Tar Epoxy, 3PE, Vanish Coating, Bitumen Coating, Black Oil coating as per customer’s requirement
- Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Bending Test, Blow Test, Impact Test, Exterior Size Inspection, Hydrostatic Test, X-ray Test
- EN 10204/3.1B
