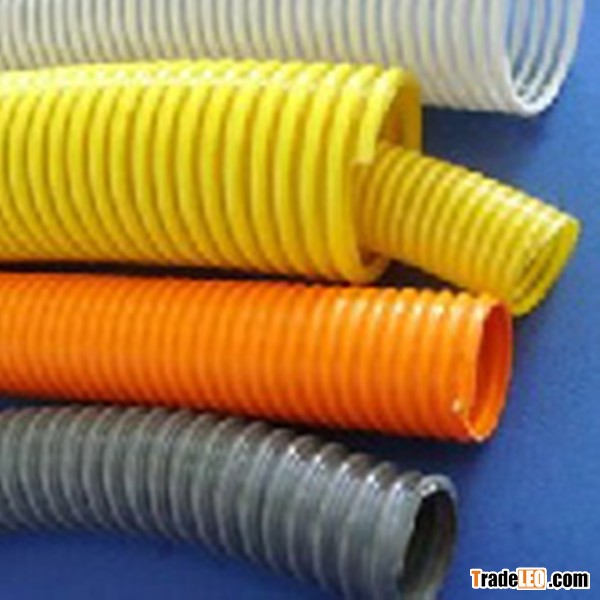

Product Description
1) PVC resin
2) multi-size available
3) flexible, resistant, erosion
APPLICATIONS:
1) the products are used for conveying water, oil, gas under normal working condition.
2) Suitable for conveying powder, grain, water and oil, etc
3) construction project, industrial and mining enterprise
CHARACTERISTICS:
1) it is flexible, durable, non-toxic, without odor, and resistant to high pressure and erosion.
WORKING TEMPERATURE: -10°C-65°C
The standard sized of PVC suction Hose
Measurement | Diameter | Work pressure. | Burst pressure | Fixed length | |
I.D | O.D | ||||
inch | mm | mm | Bar | Bar | (M/Roll) |
5/8” | 16 | 21 | -1~7 | 21 | 50 |
3/4” | 19 | 25 | -1~7 | 21 | 50 |
1” | 25 | 32 | -1~7 | 21 | 50 |
1-1/4” | 32 | 40 | -1~7 | 21 | 50 |
1-1/2” | 38 | 46 | -1~6 | 18 | 50 |
2” | 51 | 60 | -1~6 | 18 | 50 |
2-1/2” | 64 | 73 | -1~5 | 15 | 20 |
3” | 76 | 86 | -1~4 | 12 | 20 |
4” | 102 | 113 | -1~4 | 12 | 20 |
5” | 127 | 139 | -1~4 | 12 | 20 |
6” | 152 | 166 | -1~4 | 12 | 20 |
