Model:1-1/8"

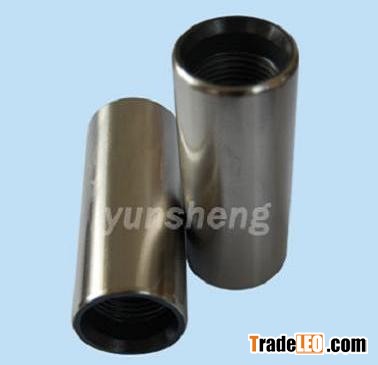

API Class T sucker rod couplings Sucker rod couplings are a key component in the successful performance of a sucker rod string. By minimizing the wear and corrosion of couplings, it increases the life of sucker rod.
The Class T coupling is manufactured with a through hardiness of between 16 and 23 Rc. This results in high tensile and fatigue strength for the coupling. The outside diameter is smooth to minimize stress concentrations, and an accurate chamfer allows for controlled contact stress. The threads are rolled full form which results in compressive stresses at the thread root and improved fatigue resistance.
Technical Parameters
Other information
1.Smoothness: 3.1*10-3 2.Coat Thickness(in): 0.01in ~ 0.02in 3.Basic hardness: HRC 16-23 4.Surface Hardness: HRC 55-62 5. Bonding Strength(Mpa): 484 6.Hole rate: <2% 7. Min. Hardness of the layer: 595HV0.2 8. Min. Tensile Strength: 655 Mpa 9.Operating Temperature: -1000~400 Centigrade Temperature 10. Life: > 180 days 11.Package: wooden case, 1000pcs each case. 12.Usage: oil exploration equipment, accessories, oil sucker rod coupling Any question please contact me. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
