Model:PVC Tubing
Send Inquiry

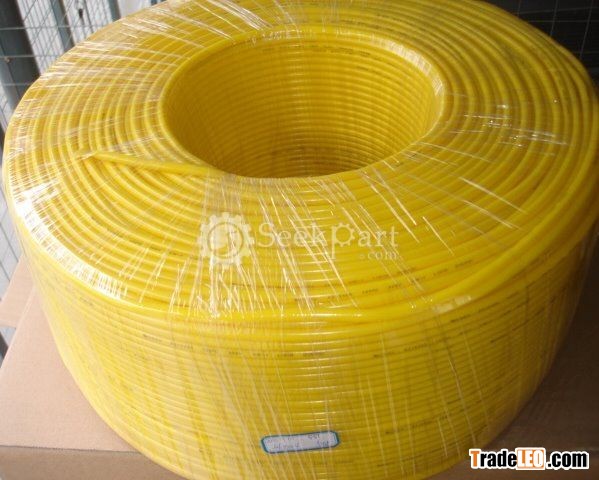

PVC Tubing
Product Description:
- Specification: Φ1.00mm ~ Φ20.0mm
- 105°C UL PVC materials
- Rated voltage: 300V, 600V
- Excellent insulation and flexibility
- UL approved
- Meet RoHS standards
Colour: Black White Transparence Yellow etc.
Application: Be popular used in H-grade motors, home electrical appliances dielectric, etc.
Characters:
Item | Value |
Continuous Operating Temperature | -60oC ~ 200oC |
Temperature Endurance | 200±2oC 168Hs |
Aging Test | 260oC 6Hs No crack |
Cold Bend | No crack |
Horizontal Flame Test | < 30 seconds |
Flame Retardant | < 30 seconds |
Volume Resistance | Good |
Submerge Water Test | Excellent |
Serial number (AWG) | ID(mm)(Tolerance) | Package (M/R) | Wallthickness (mm) 300V | Wallthickness (mm) 600V |
| 0＃ | 8.2±0.3 | 300 | 0.45 | 0.6 |
| 1 | 7.4±0.3 | 400 | 0.45 | 0.6 |
| 2 | 6.7±0.3 | 400 | 0.45 | 0.6 |
| 3 | 5.9±0.3 | 500 | 0.45 | 0.6 |
| 4 | 5.3±0.3 | 500 | 0.45 | 0.6 |
| 5 | 4.8±0.3 | 500 | 0.45 | 0.6 |
| 6 | 4.2±0.3 | 500 | 0.45 | 0.6 |
| 7 | 3.8±0.3 | 500 | 0.45 | 0.6 |
| 8 | 3.3±0.2 | 500 | 0.45 | 0.5 |
| 9 | 3.0±0.2 | 500 | 0.45 | 0.5 |
| 10 | 2.7±0.2 | 500 | 0.35 | 0.5 |
| 11 | 2.4±0.2 | 500 | 0.35 | 0.5 |
| 12 | 2.1±0.2 | 500 | 0.35 | 0.5 |
| 13 | 1.9±0.2 | 500 | 0.35 | 0.5 |
| 14 | 1.6±0.2 | 500 | 0.35 | 0.5 |
| 15 | 1.5±0.2 | 500 | 0.35 | 0.5 |
| 16 | 1.3±0.15 | 500 | 0.35 | 0.5 |
| 17 | 1.2±0.15 | 500 | 0.35 | 0.5 |
| 18 | 1.07 ±0.15 | 500 | 0.35 | 0.5 |
