Name

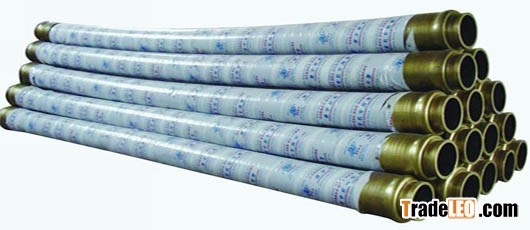

Concrete rubber end hose
Model
DN125 (5'')/DN100 (4'')/3"/2.5"/2"
Size
ID
(mm) 50.0 64.0 76.2 89.0 101.6 115.0
WT
(mm) 9±0.75 10±0.75 12.9±1 13.5±1 14.2±1 14±1
OD
(mm) 68±1.5 85±1.5 102±1.5 116±1.5 130±1.75 143±2
W.P.
(bar) 85 85 85 85 85 85
B.P.
(bar) 200 200 200 200 200 200
Bend Radius
(mm) 200 250 270 290 300 320
Weight
( Kg/m) 2.36 3.88 5.55 7.20 8.13 9.21
Material
natural rubber ,steel wire
Technical
steel wire weaving, composite molding, 20,000 CBM QUALITY, 85 BAR W.P., HOSE END Harden
Brand
Sany ,Zoomlion, Schwing ,Putzmeister
