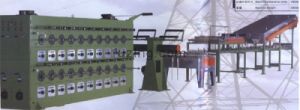

Add one room inside the anealer, can make the temperature impartial distribution. Dual tinning tank design, it can produce two kindsof tin-coating copper wire in the same time. Spooler arranged in double layer can save space.
This is widely used in the CCA wire, and this machine is especially suitable for the Tin-coating round copper wire.
Techinical Parameters
No. of wire:40
Wire diameter:0.10-0.32mm.
Pay-off stand: by tension wire
Line speed:Max 300m/min
Take-up type:Single spoller drive by torque motor
Spooler dia: PT5-PT25
Heaterc consumption:36KW
Power consumption:12.5KW
Total power consumption:48.5KW
Machine dimension:19500*2200*1600 mm
Machine weight:4000Kg
