Elgiloy alloy(Co40CrNiMo) , AMS 5833, UNS R30003
Chinese 3J21, YB/T 5253-93

Note:
This Cobalt-Chromium-Nickel alloy also known as Elgiloy? Gives a combination of high strength, ductility and good mechanical properties and is age hardenable. Phynox also has excellent fatigue life, corrosion resistance in numerous environments and is non-magnetic. This alloy is recommended where a high resistance to corrosion and / or low relaxation at temperatures up to 380C are required.

Physical data:
Approx Chemical Composition (%) Co 39-41, Cr 19-21, Ni 14-16, Mo 6-8
Density (g/cm3) 8.3
Melting Point (C) 1427
Coefficient of Expansion 15.17 μm/m C (Mean at 0 - 500C)
Heat Treatments Spring Temper Age at 520 oC-3/5 Hrs - A/C
Approx. Tensile Annealed 800-1000 N/mm2
Spring Temper 1400-1900 N/mm2
Spring Temper + Age 1900-2200 N/mm2

Rigidity Modulus 77 kN/mm2
Youngs Modulus 203.4 kN/mm2
Approx. Service Temperatures -185 to +450C

Specification:
Sheet/Plate, Bar/Rod/Wire/Coil

Size Range:
*Sheet---thickness 0.10mm~2.50mm, width: 10.0~210mm, Condition: Cold rolled, bright
*Plate---thickness 2.5mm~40.0mm, width: â?¤300mm, Condition: Cold rolled, hot rolled

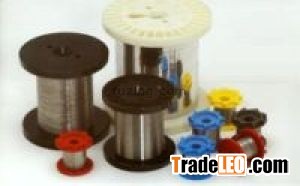

*Round Wire---Dia 0.1mm~Dia 7.0mm, Condition: Cold drawn, bright
*Flat Wire---Dia 0.5mm~Dia 7.0mm, length: â?¤1000mm, Condition: Flat rolled, bright
*Bar---Dia 7.0mm~Dia 10.0mm, length: â?¤2000mm, Condition: Cold drawn, bright.
