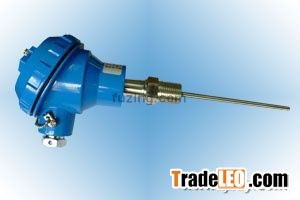

Integrated temperature transmitter generally temperature probe (thermocouple or RTD sensors) and the two-wire solid electronic unit. The form of solid blocks by temperature probes installed directly on the cable box, to form the integrated transmitter. Integrated temperature transmitter is generally divided into two kinds of heat resistance and thermocouple type type.

Integrated Temperature Transmitter output for the reunification of 4 ~ 20mA signal; with computer system or other conventional instruments matched. User requirements can be made explosion-proof or fire-type measuring instruments
Input: PT100, k, E
Output :4-20mA ,0-5V
Range: -200-450 ° ,0-1100 °
Accuracy: PT100 ± 0.25, K ± 0.75
Power Supply: DC24V
Shape: M27 × 2, G1 / 2
